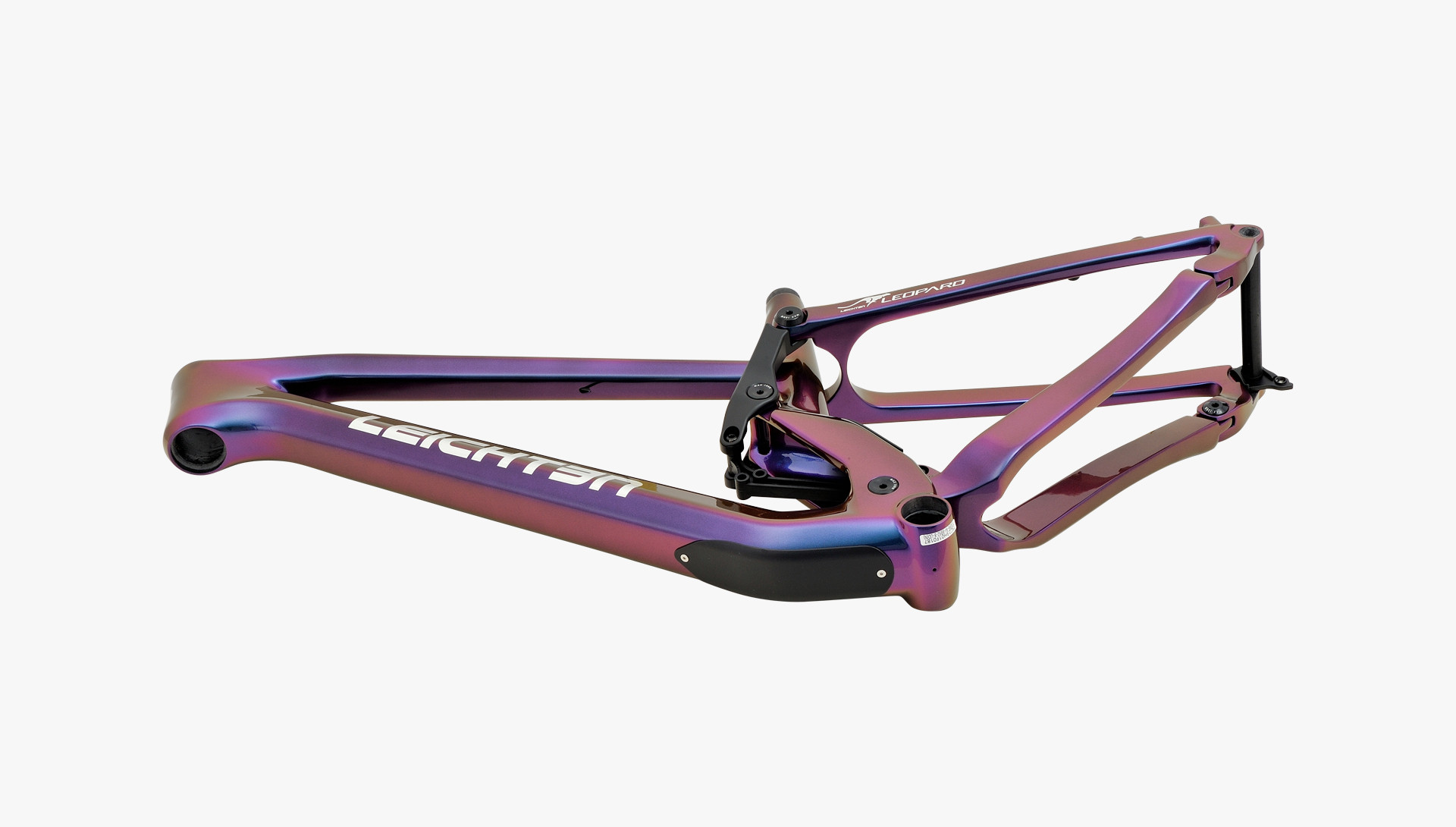

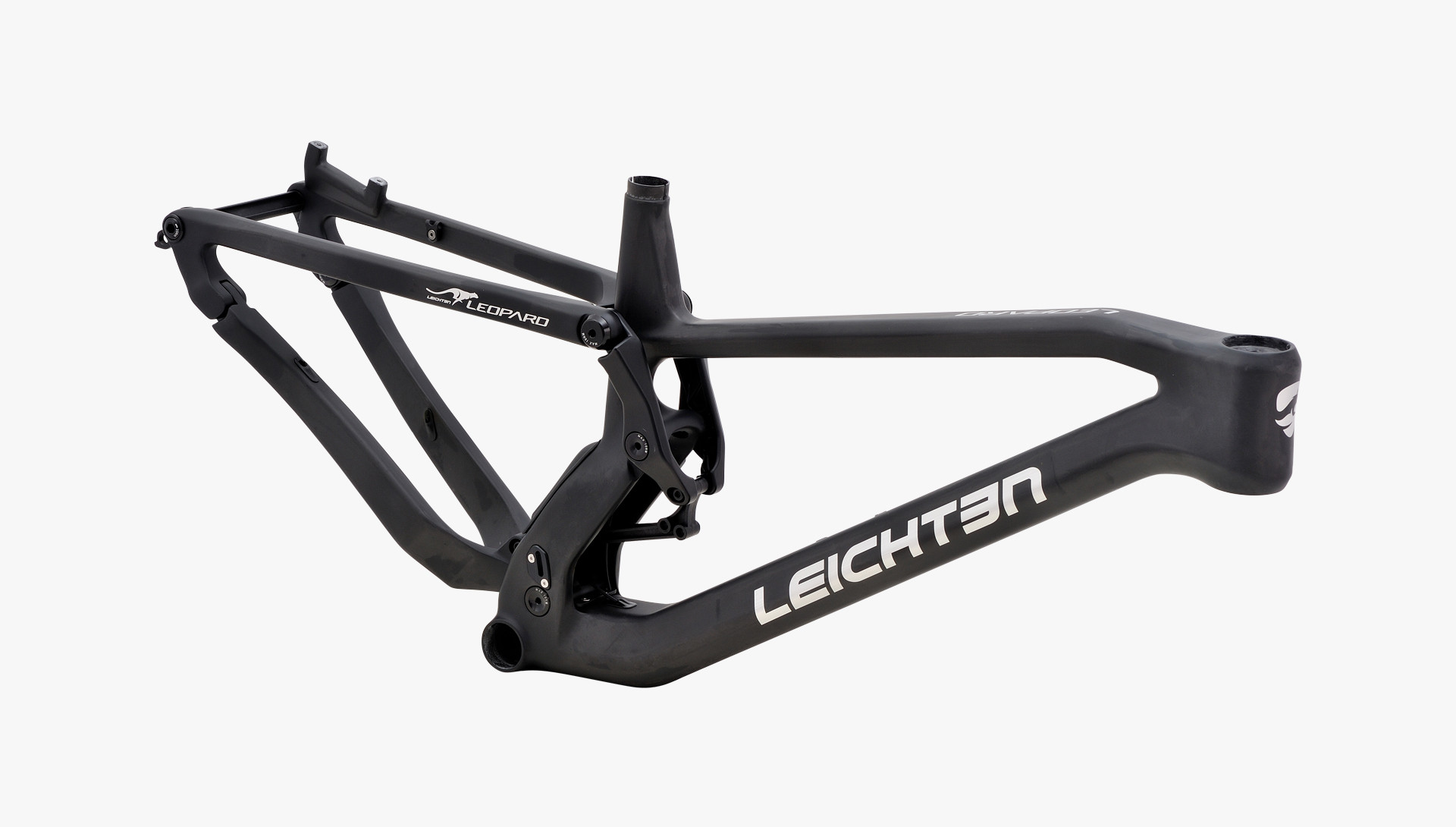

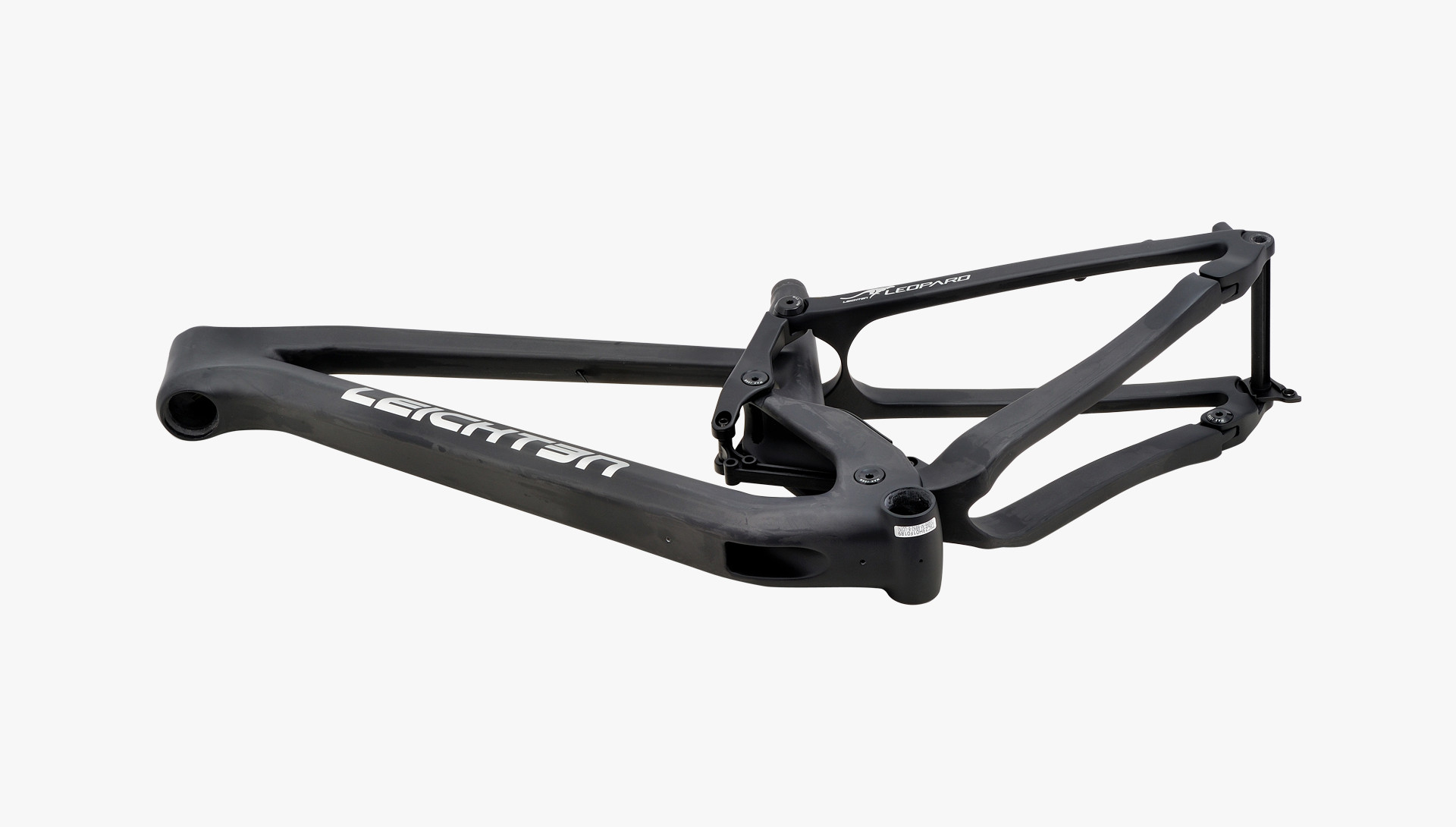

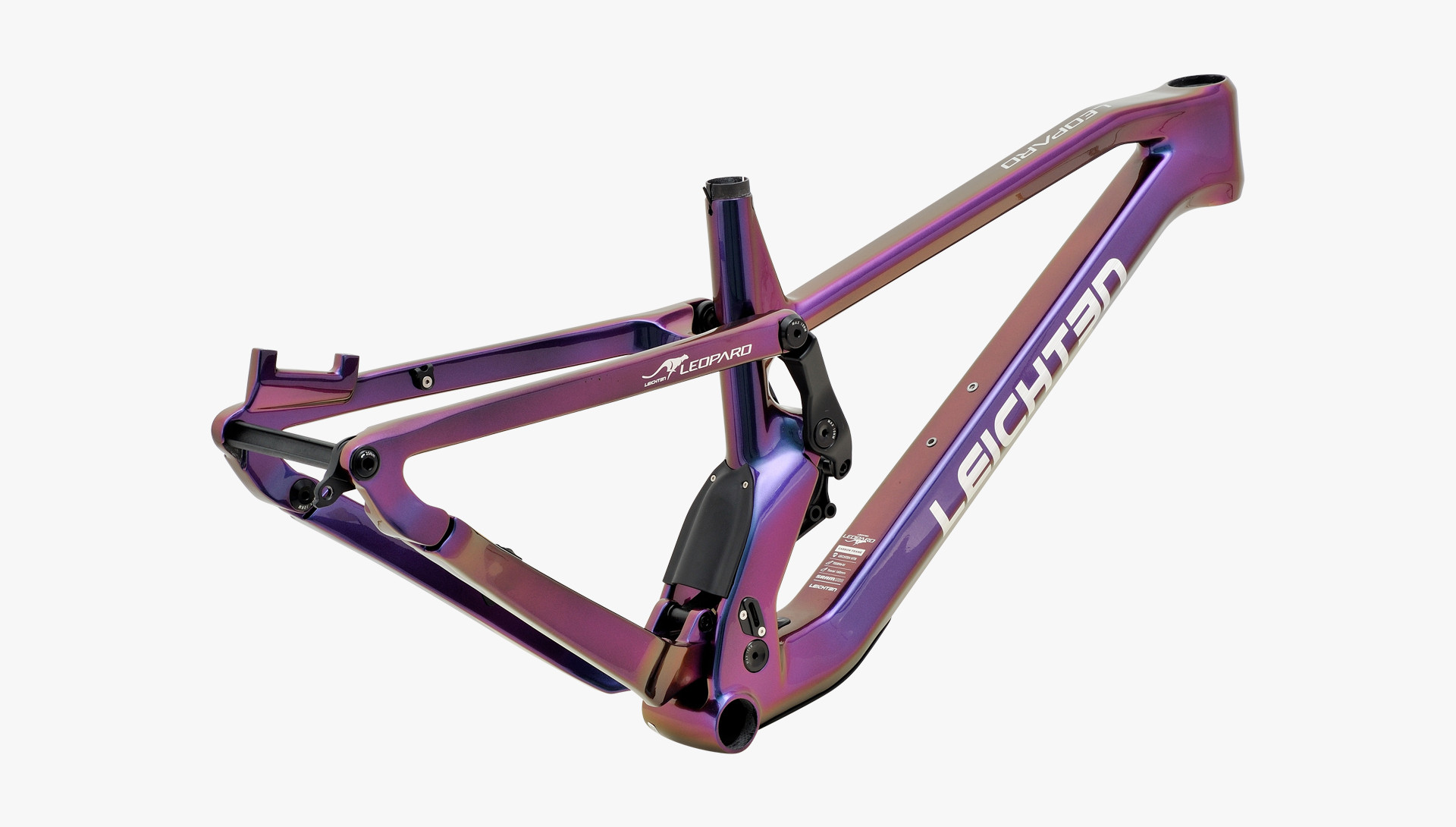

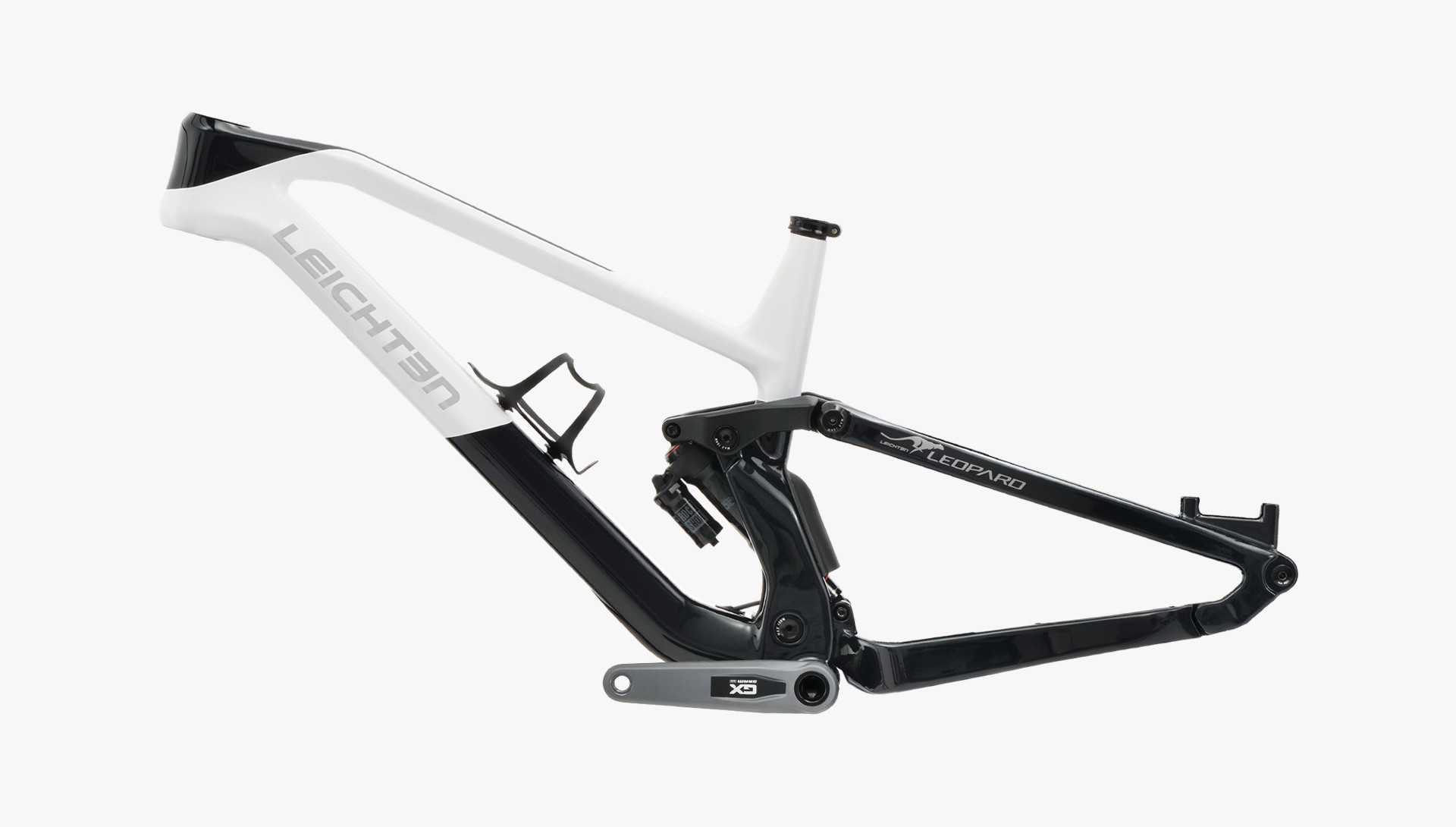

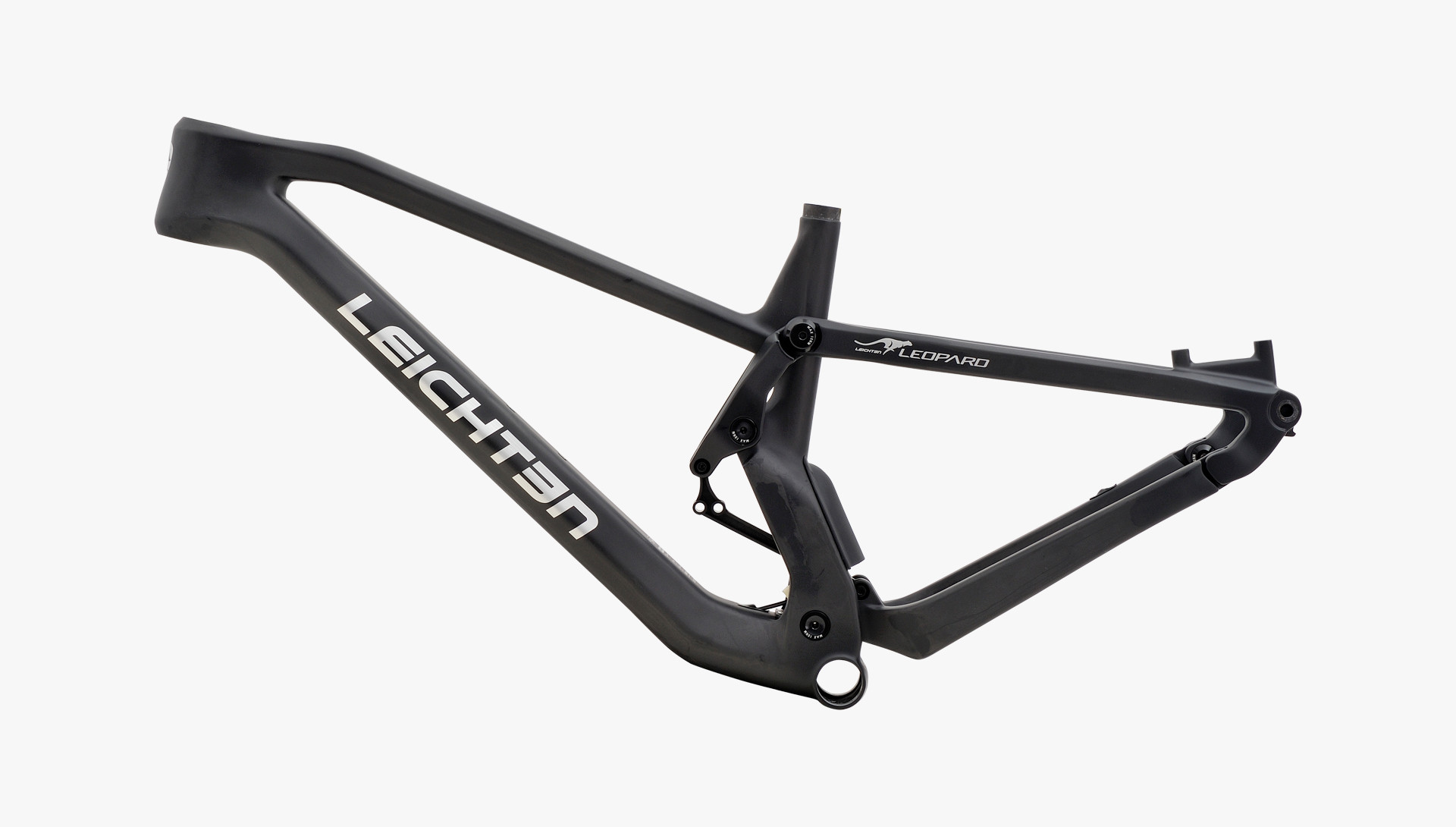

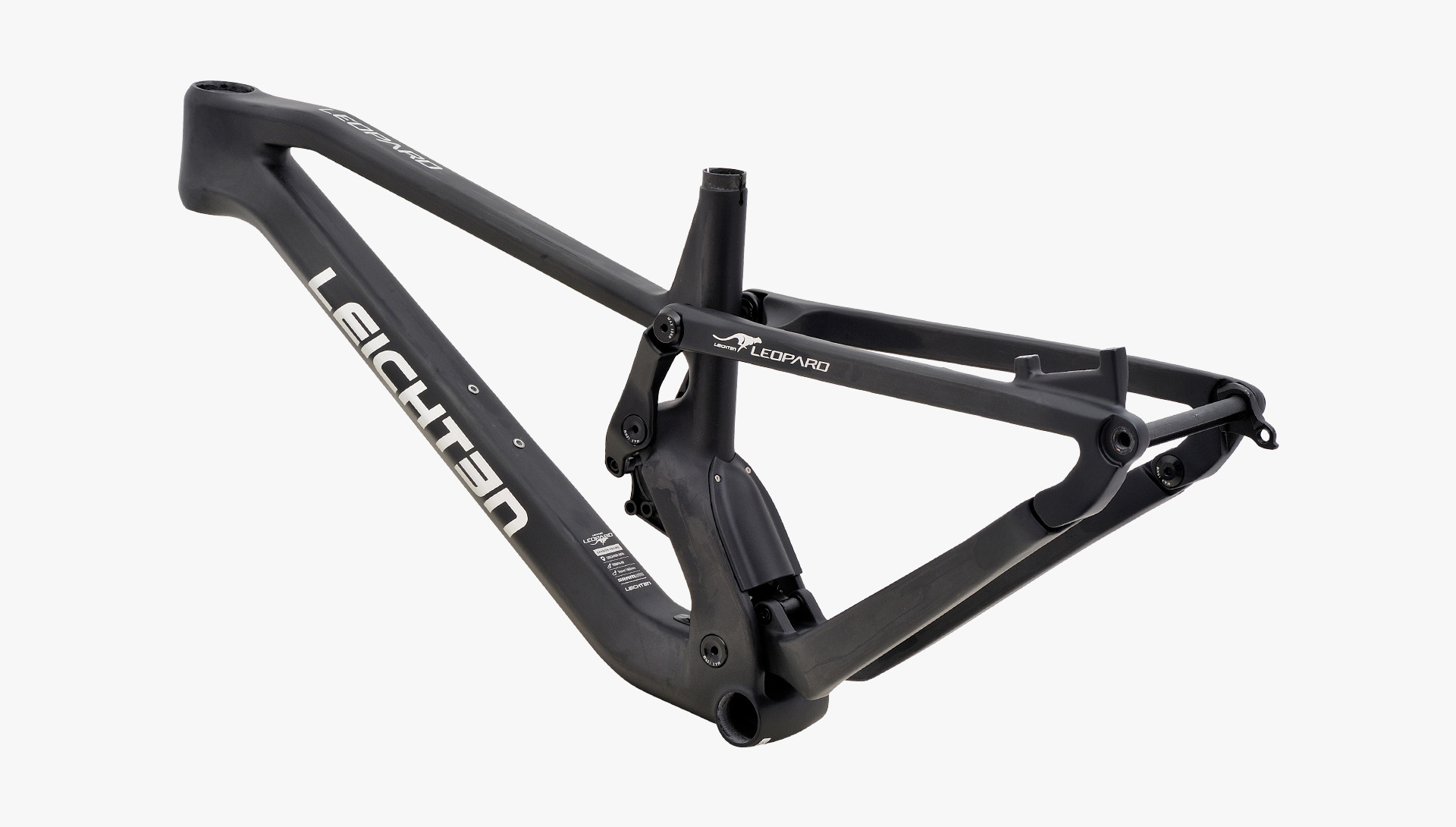

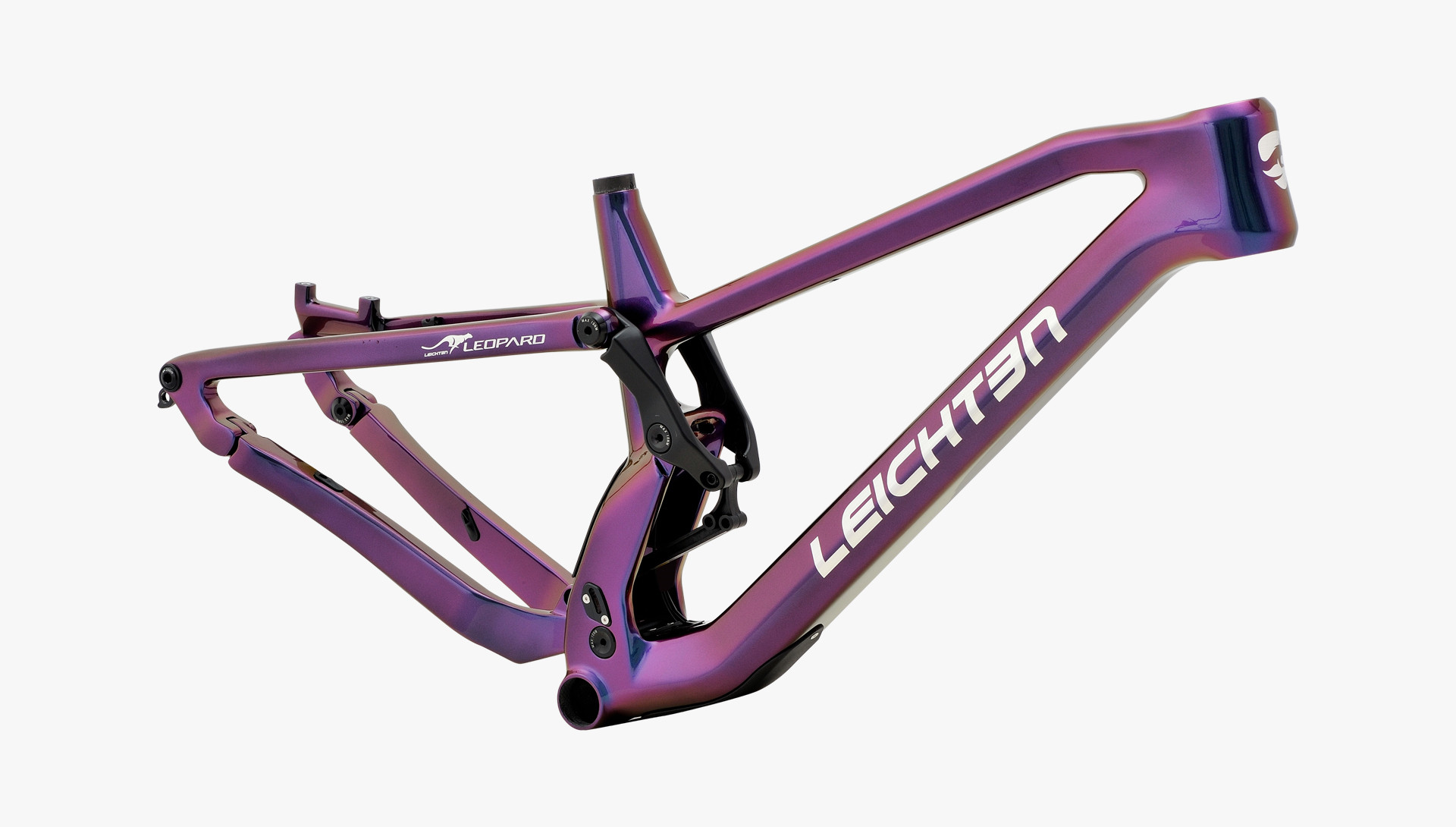

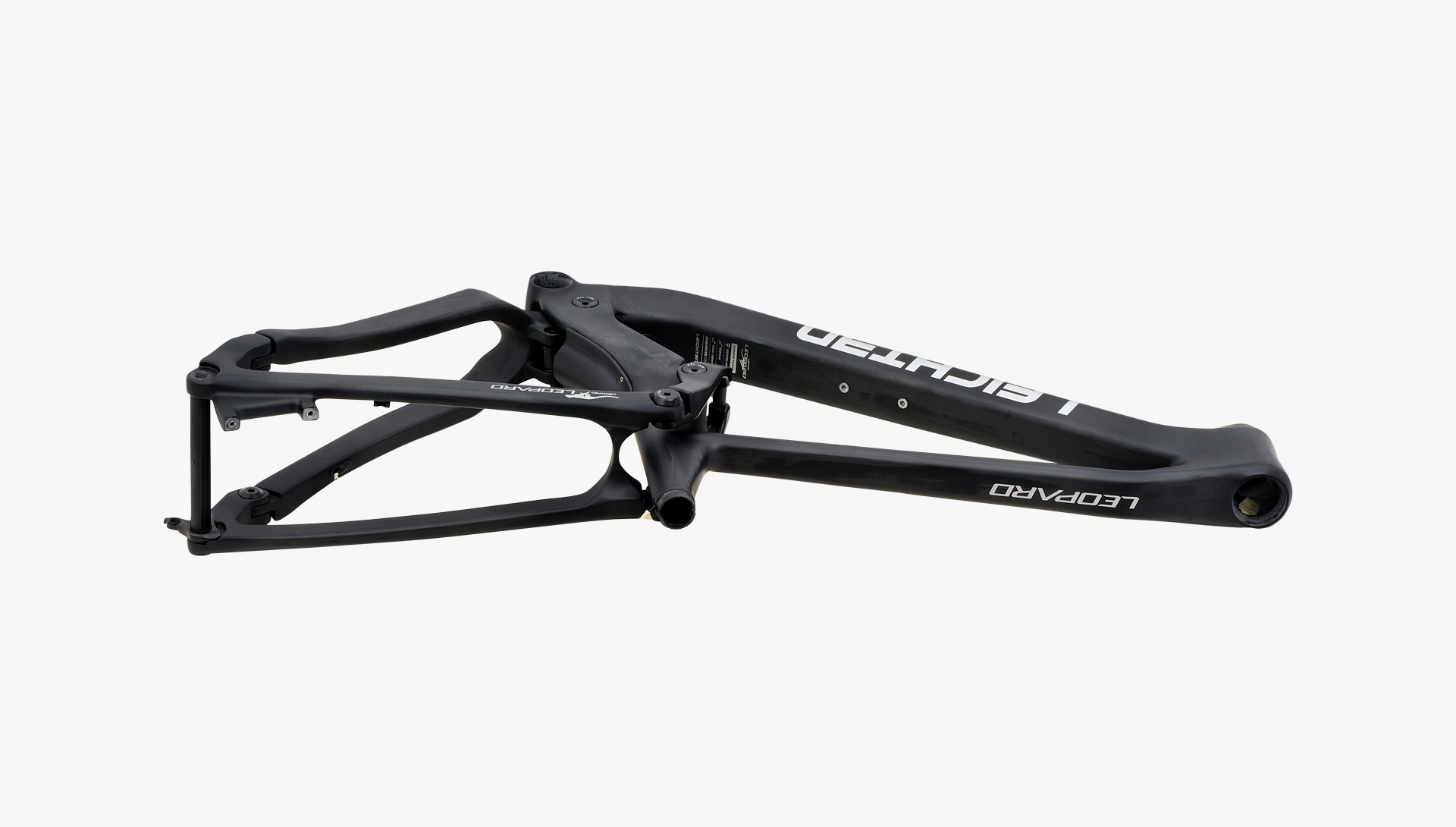

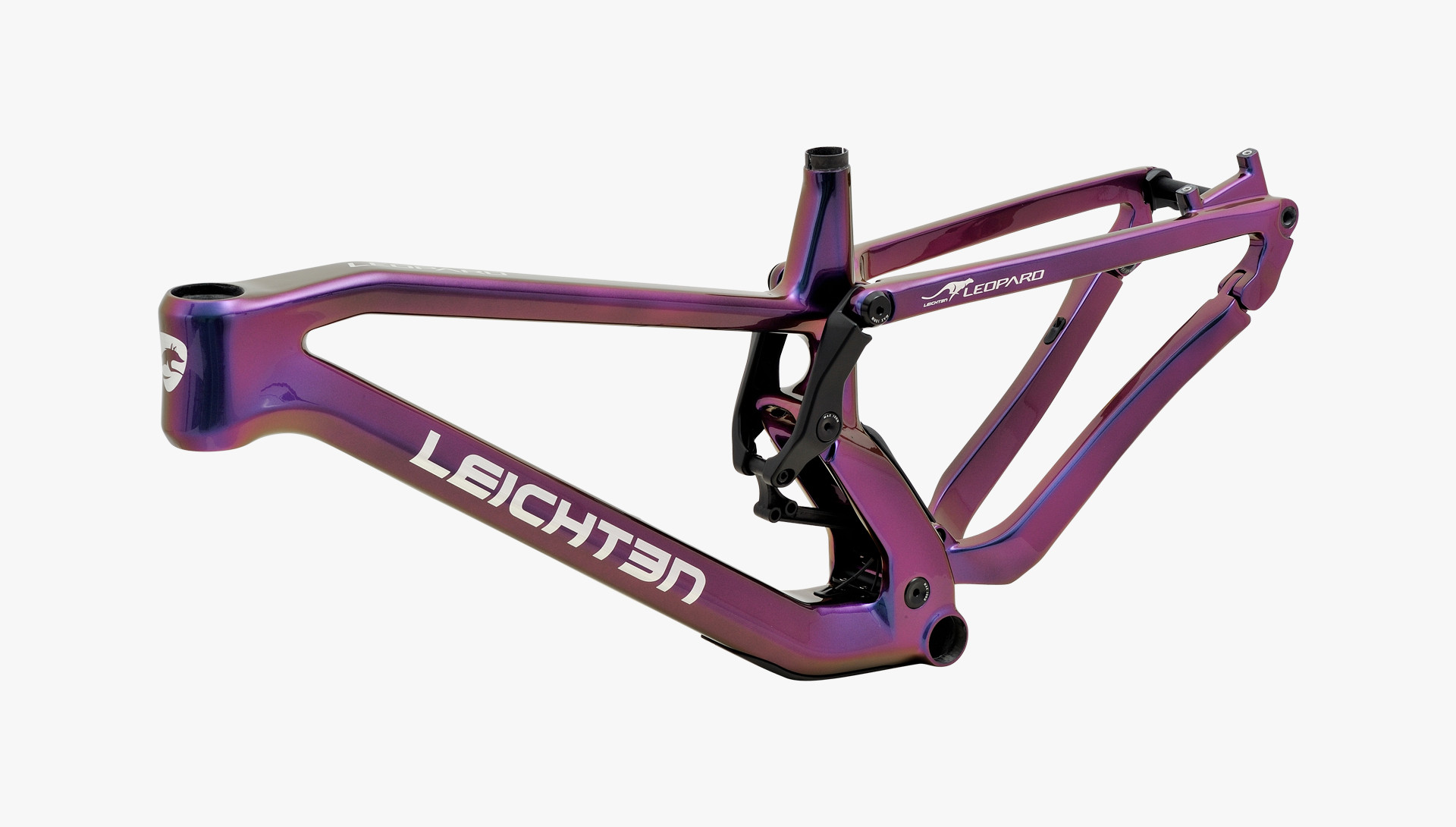

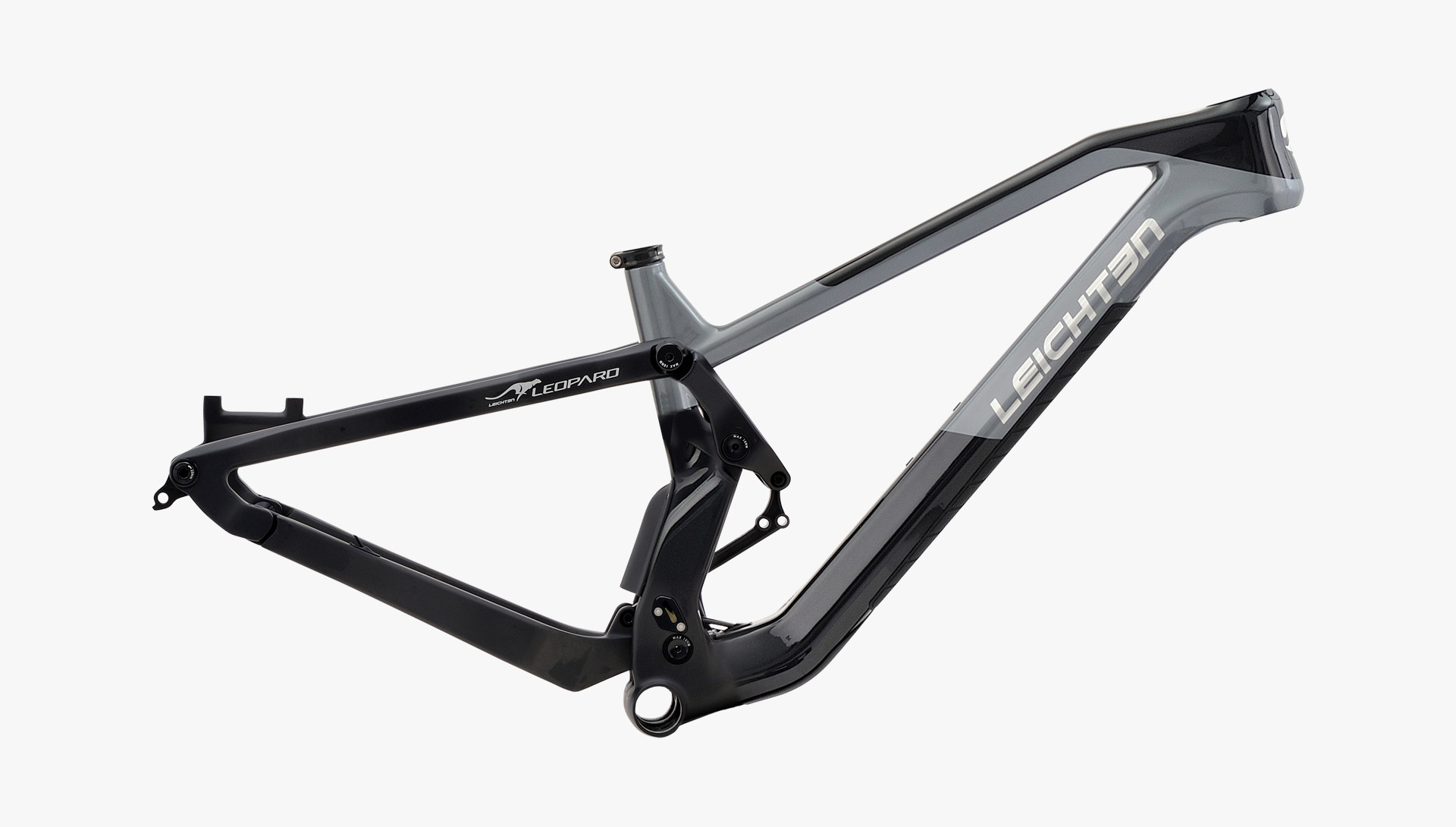

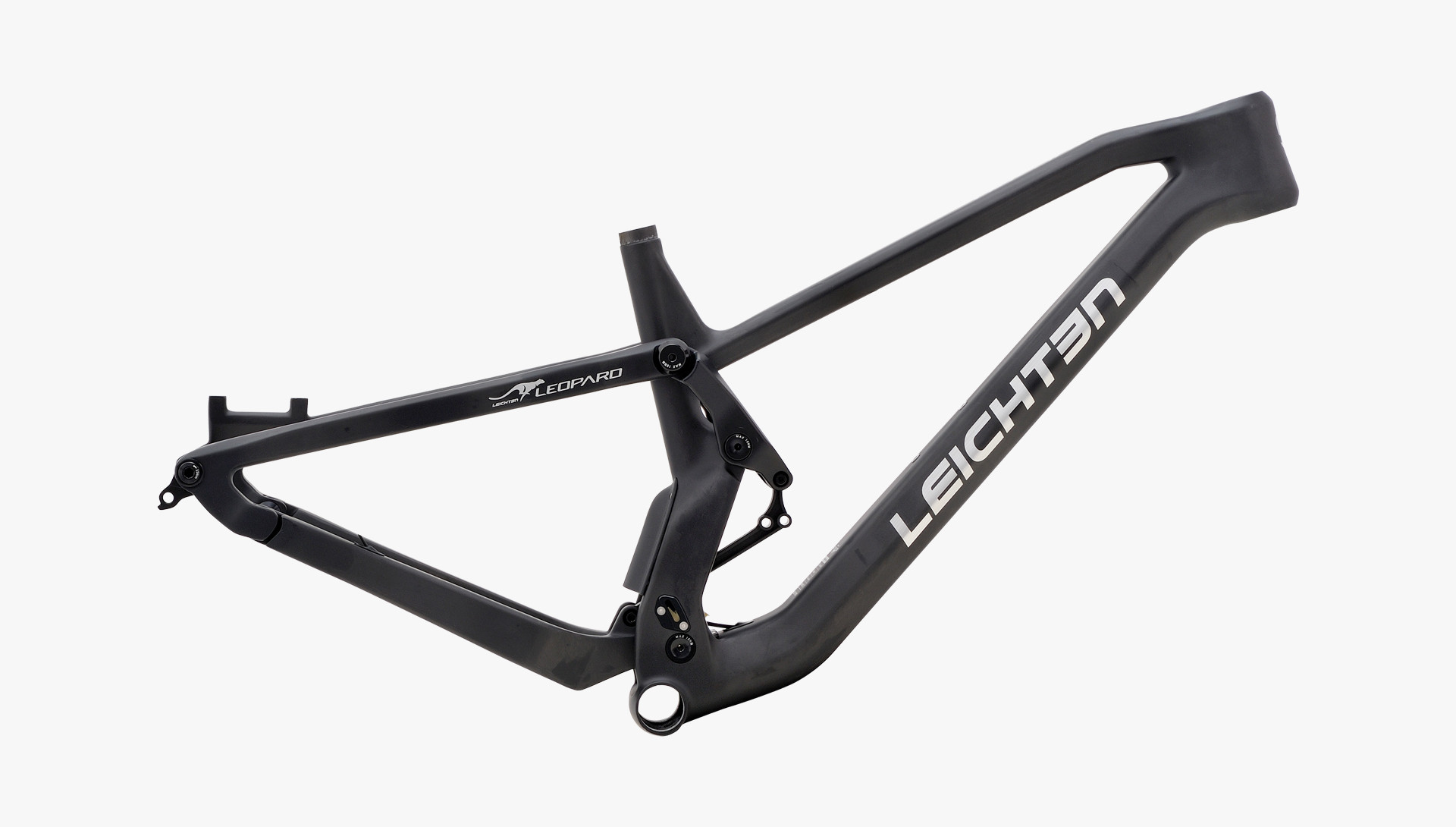

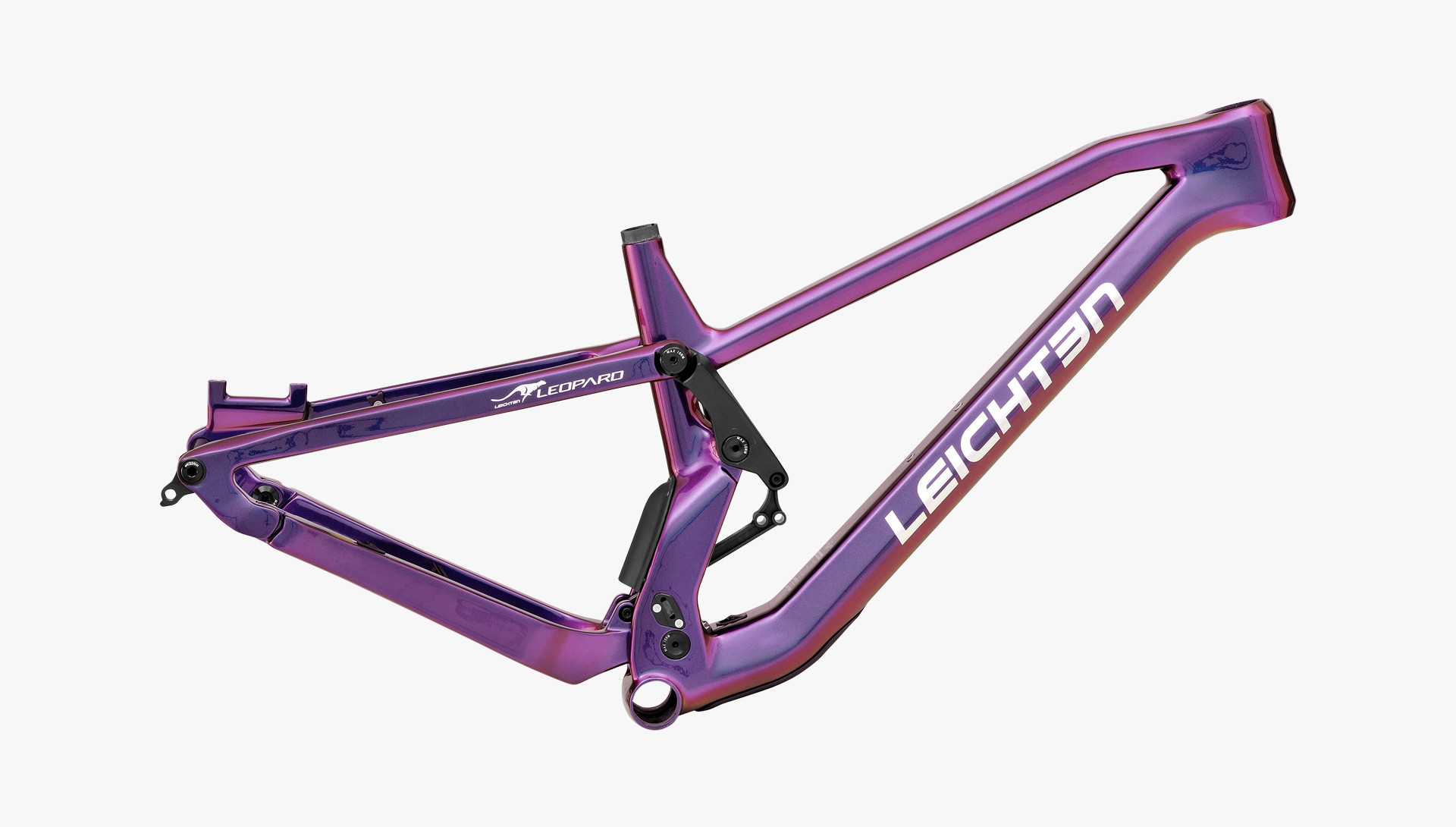

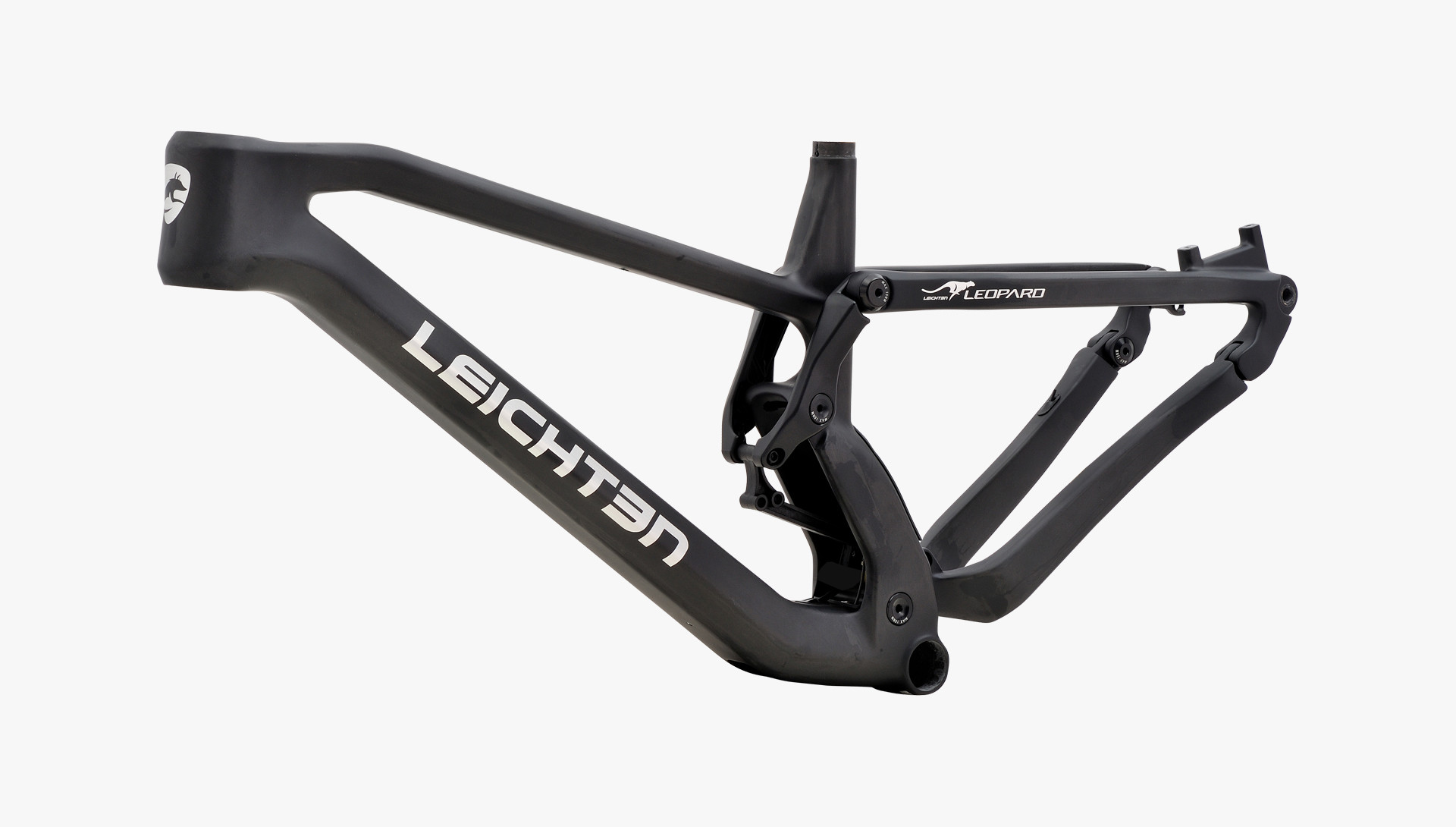

LAEPAWL 1 FRAME
Utilizing T800 hybrid layered carbon fiber, it is constructed through an optimized internalskeleton structure and high-pressure molding process, supporting fully internal cable rout.ing. Based on precise stress analysis of each frame region, targeted carbon fiber layup isapplied to achieve an exceptional strength-to-weight ratio, tackling demanding Endurotrail challenges with composure.
Bicycle Specification
- 1Frame Size: S/M/L
- 2 Headset: FSA ACR (1 1/2”)
- 3 Seatpost: Ф31.6mm
- 4 Cable routing: internal cable
- 5 Travel: F160/R 160
- 6 Tire(MAX): 29x2.6
- 7 Width ofrear axle: 12x148mm
- 8 Chainwheel(MAX): 36T
- 9 Middle shock: 230x60mm
- 10 Weiqht: 2600g/SIZEM/BB92
- 11 Brake: 180mm
- 12 Rear Axle: 176mm M12xP1.0xL15
ENGINEERED FOR ENDURO COMPLETE COMPATIBILITY
Featuring progressive geometry designed to enhance high-speed stability, with a lowcenter of mass that improves cornering control. The tuned head tube angle strikes abalance between climbing efficiency and descending capability.
The frame is built to accommodate 160-180mm travel forks and supports either 29-inchwheels or a mixed setup with a 27.5-inch rear wheel. Equipped with oversized bearingsand the Boost standard, it provides a solid platform for modern high-performancemountain bike components.

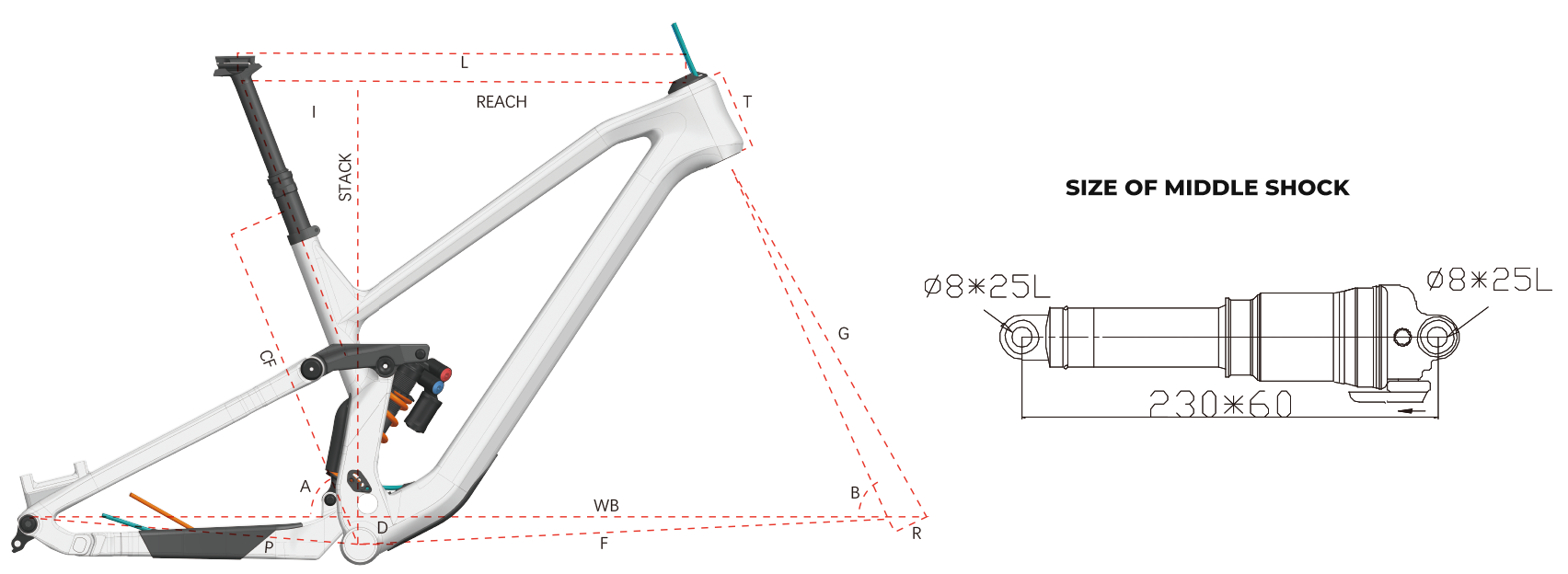

FRAME GEOMETRY
