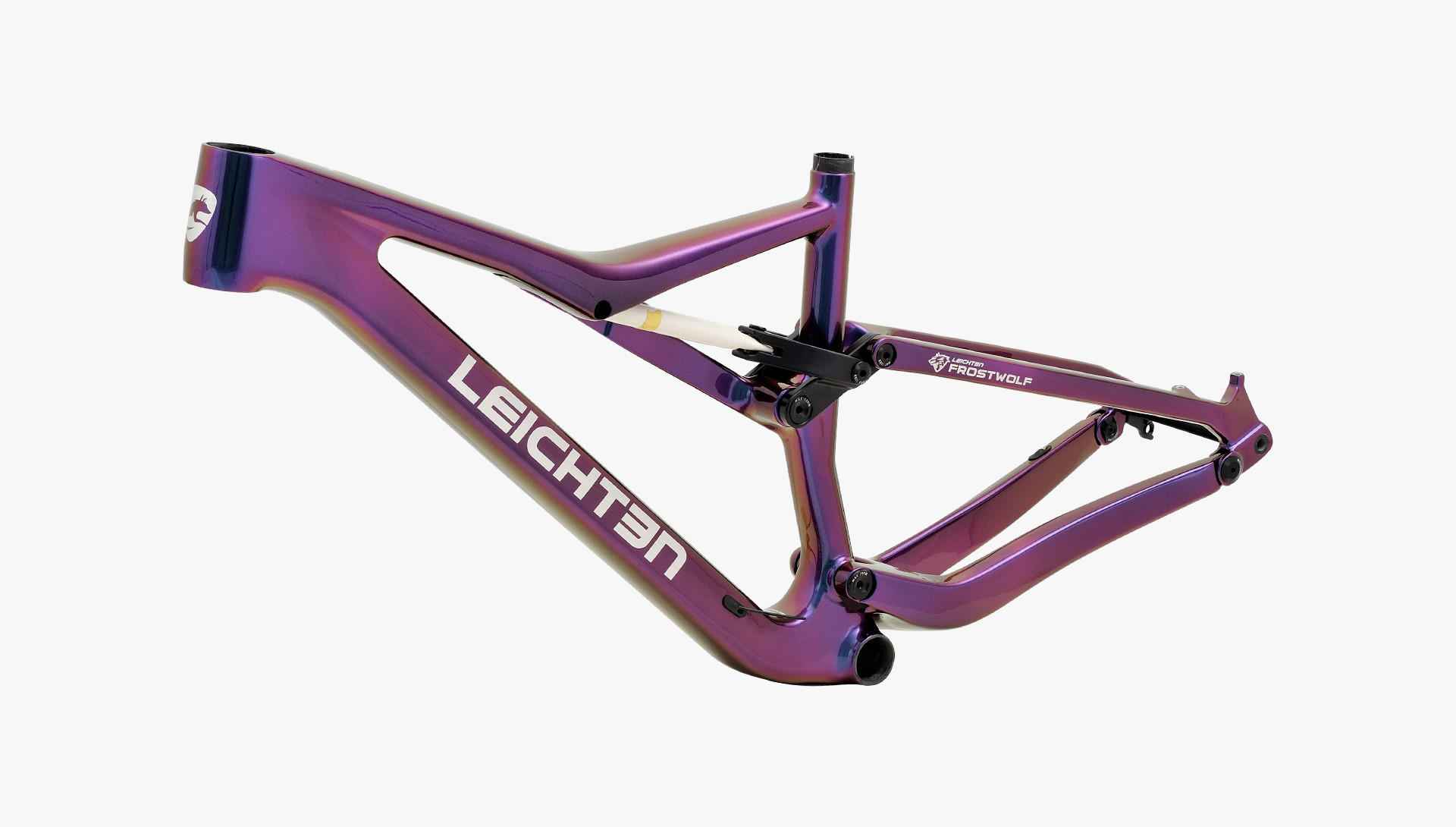

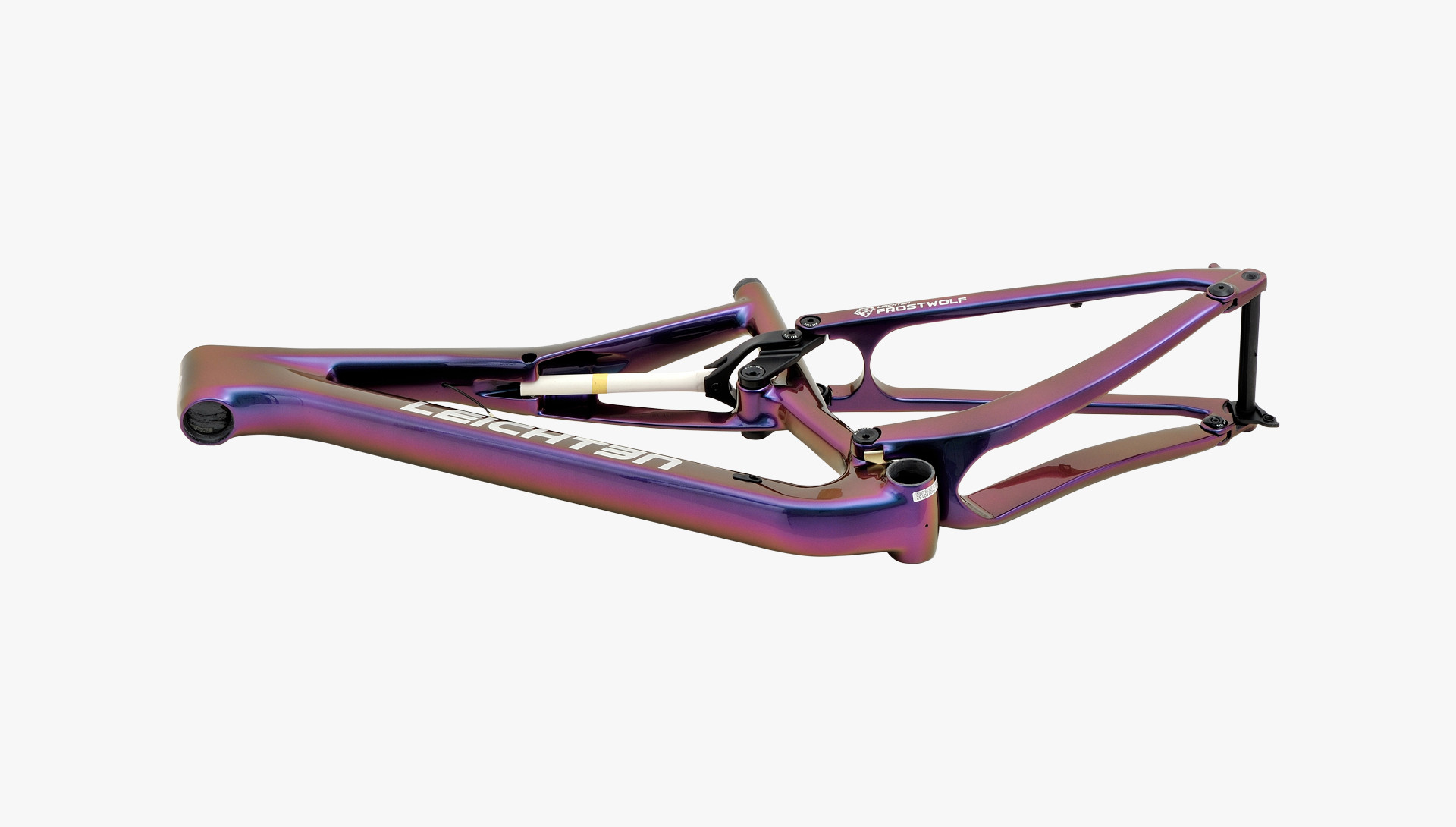

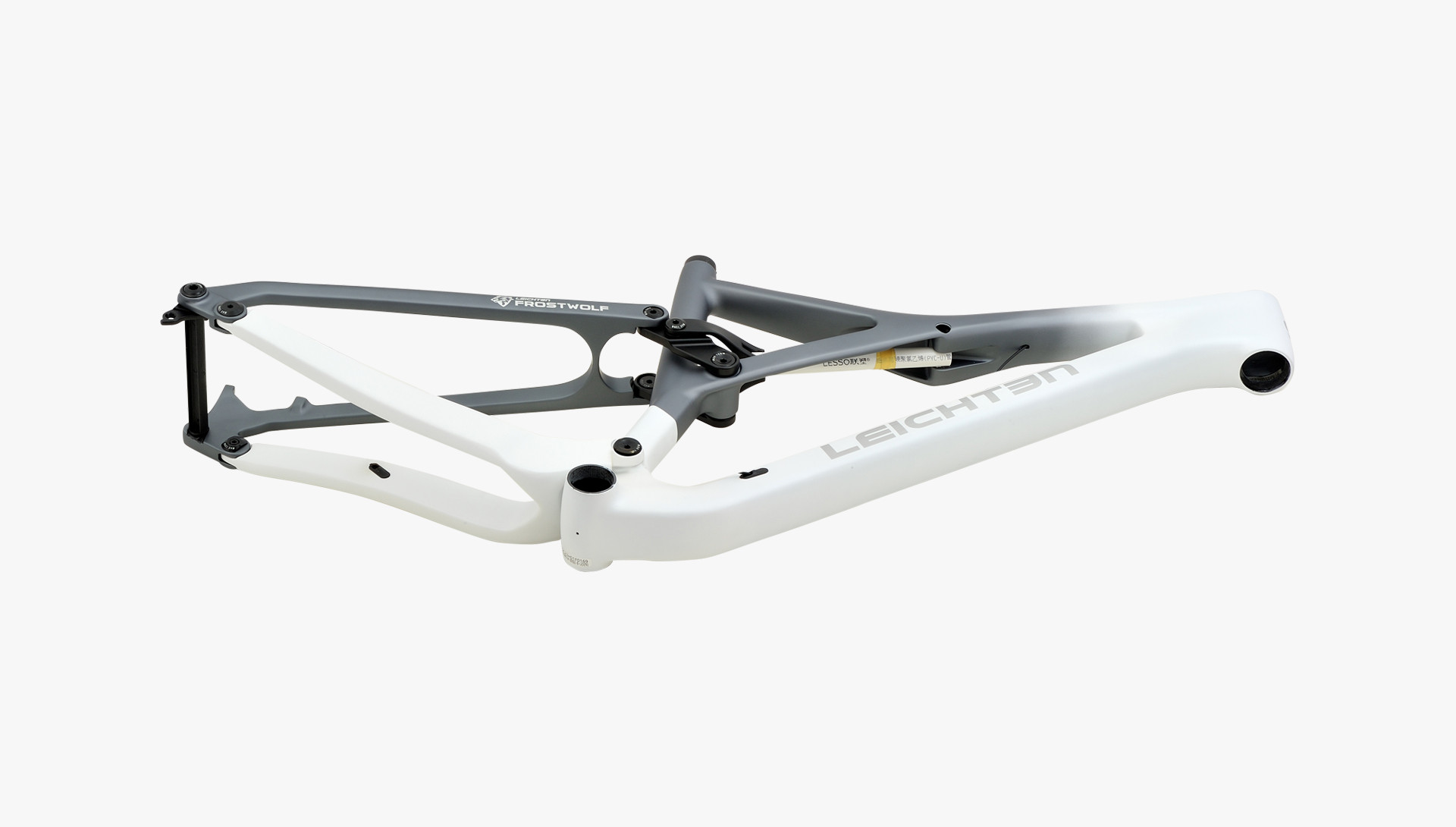

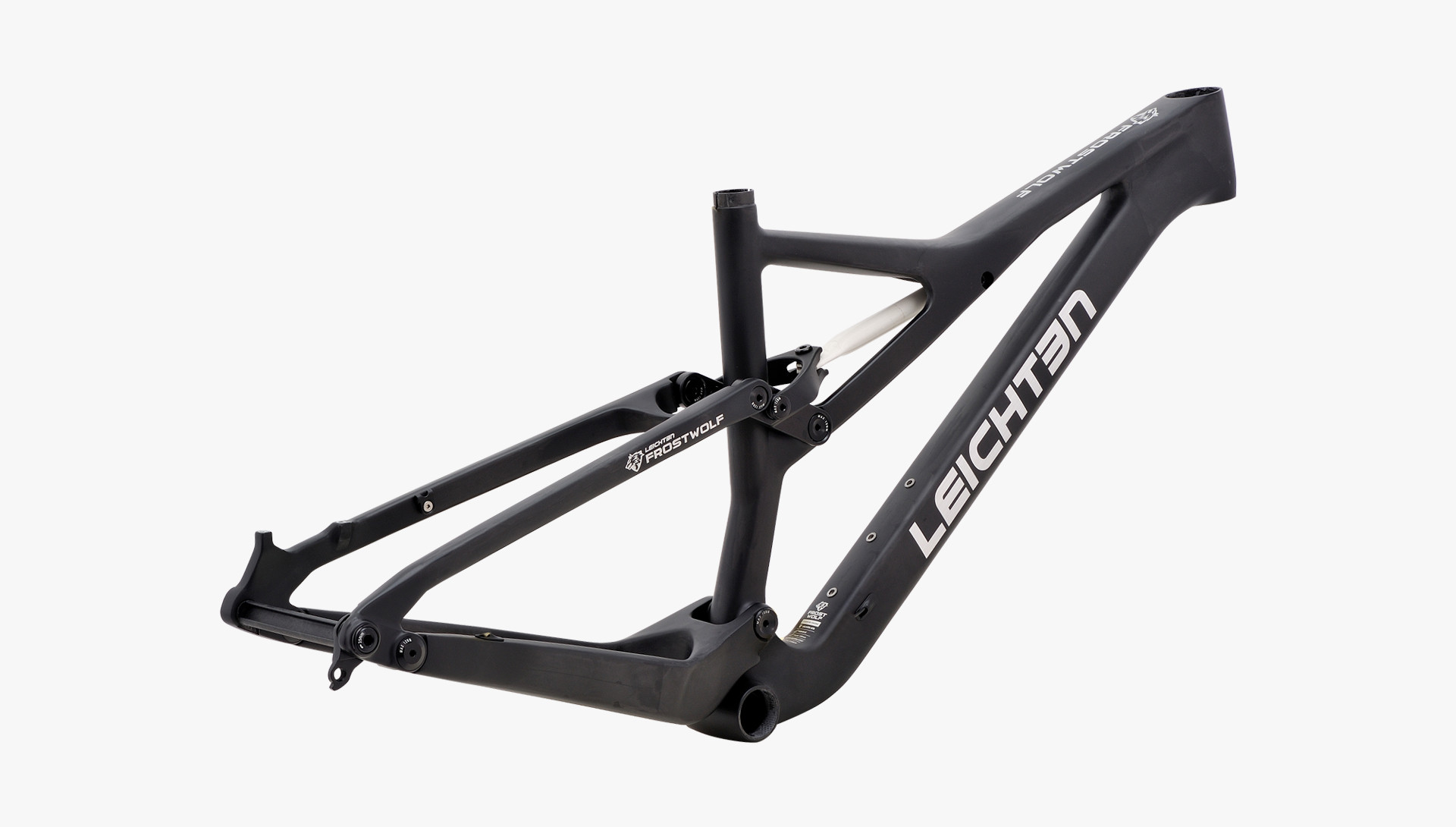

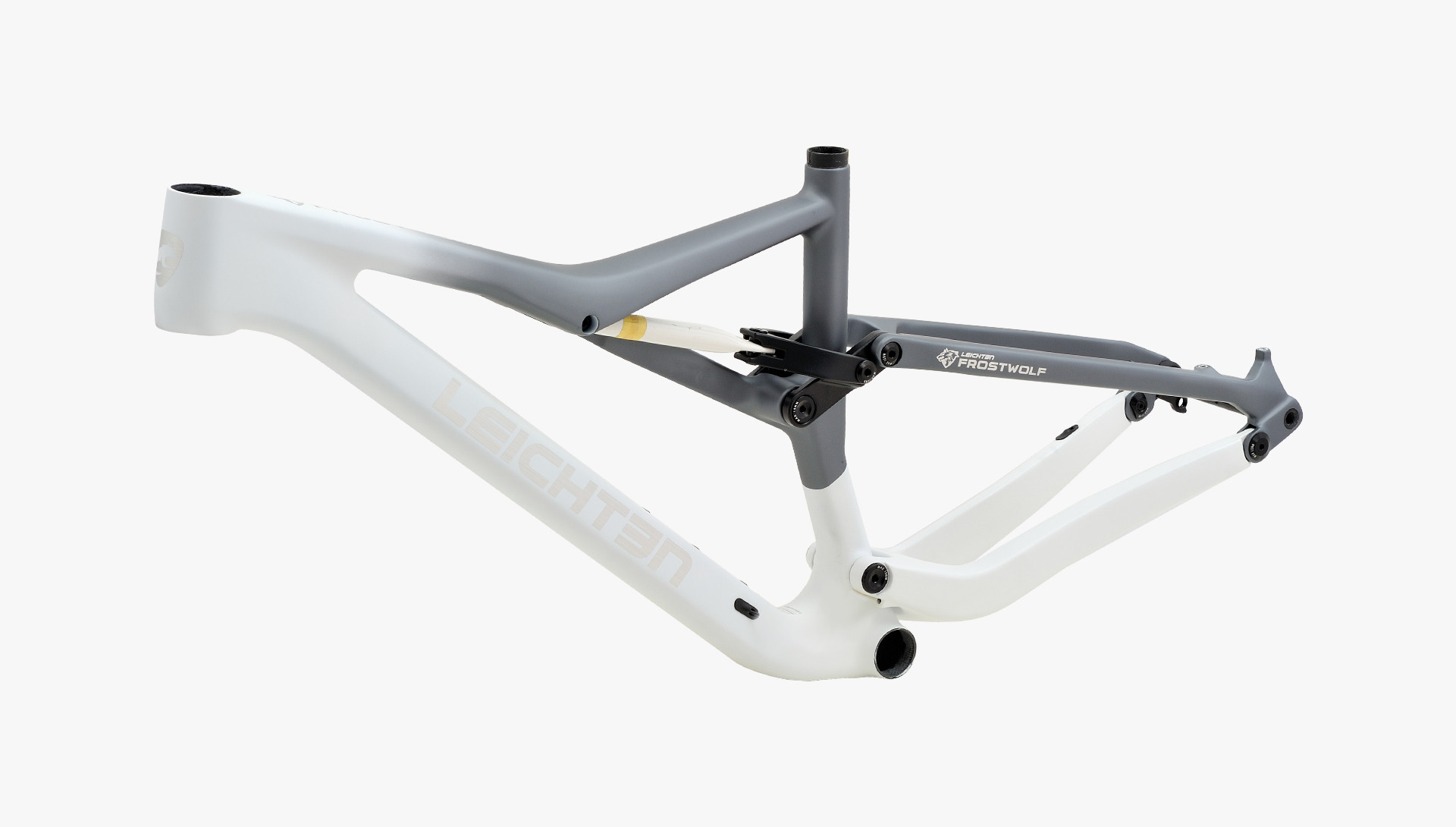

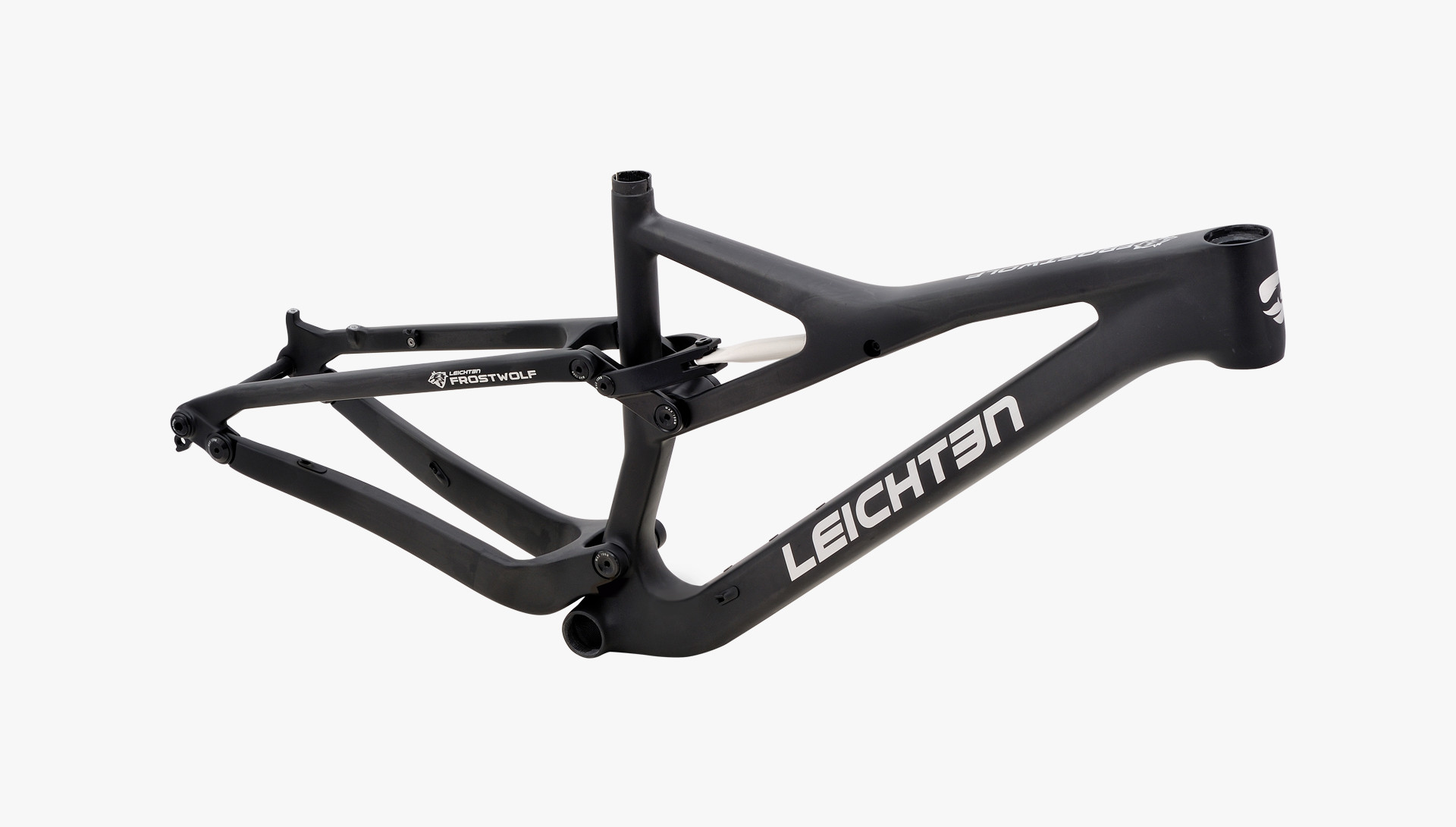

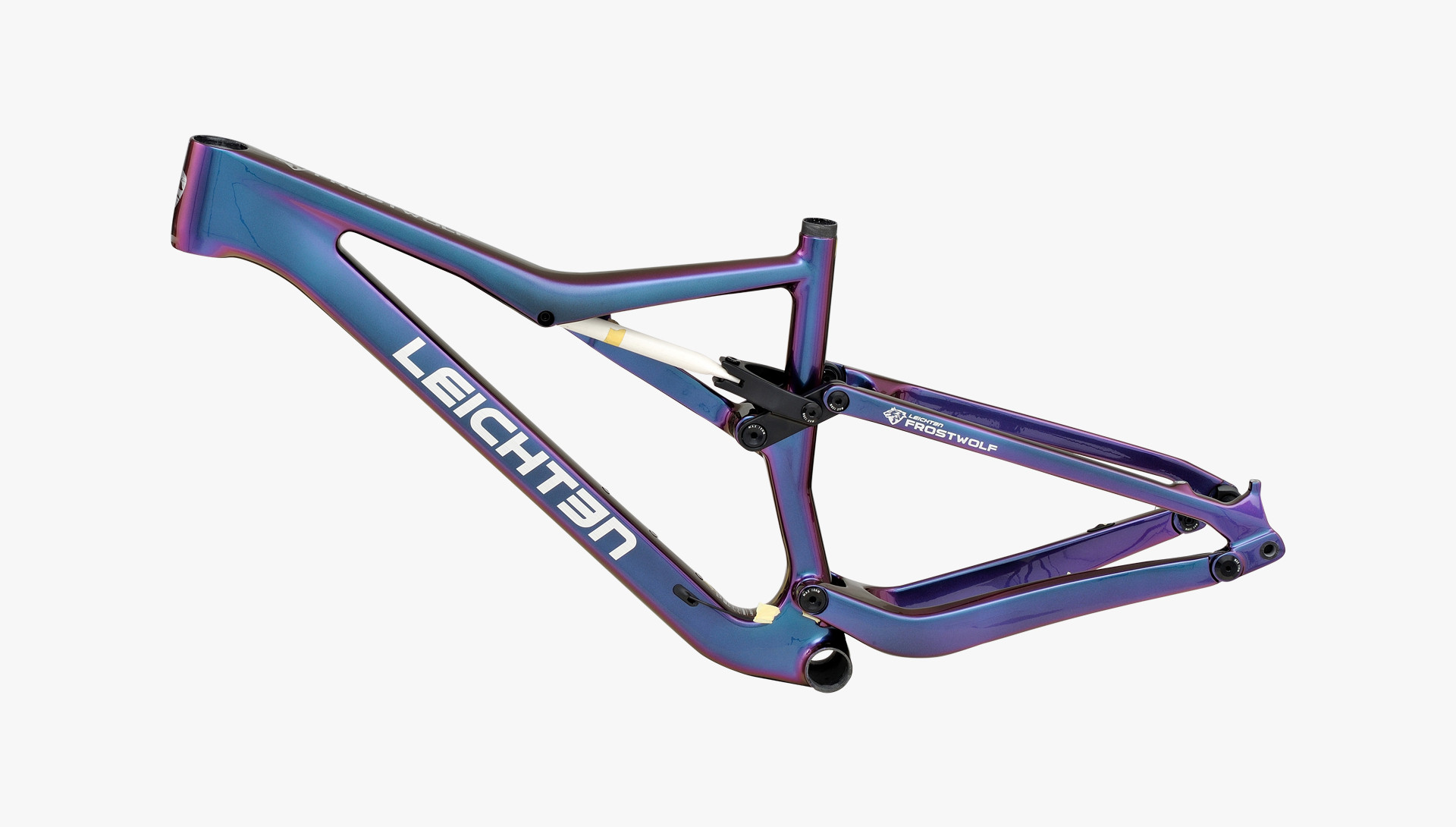

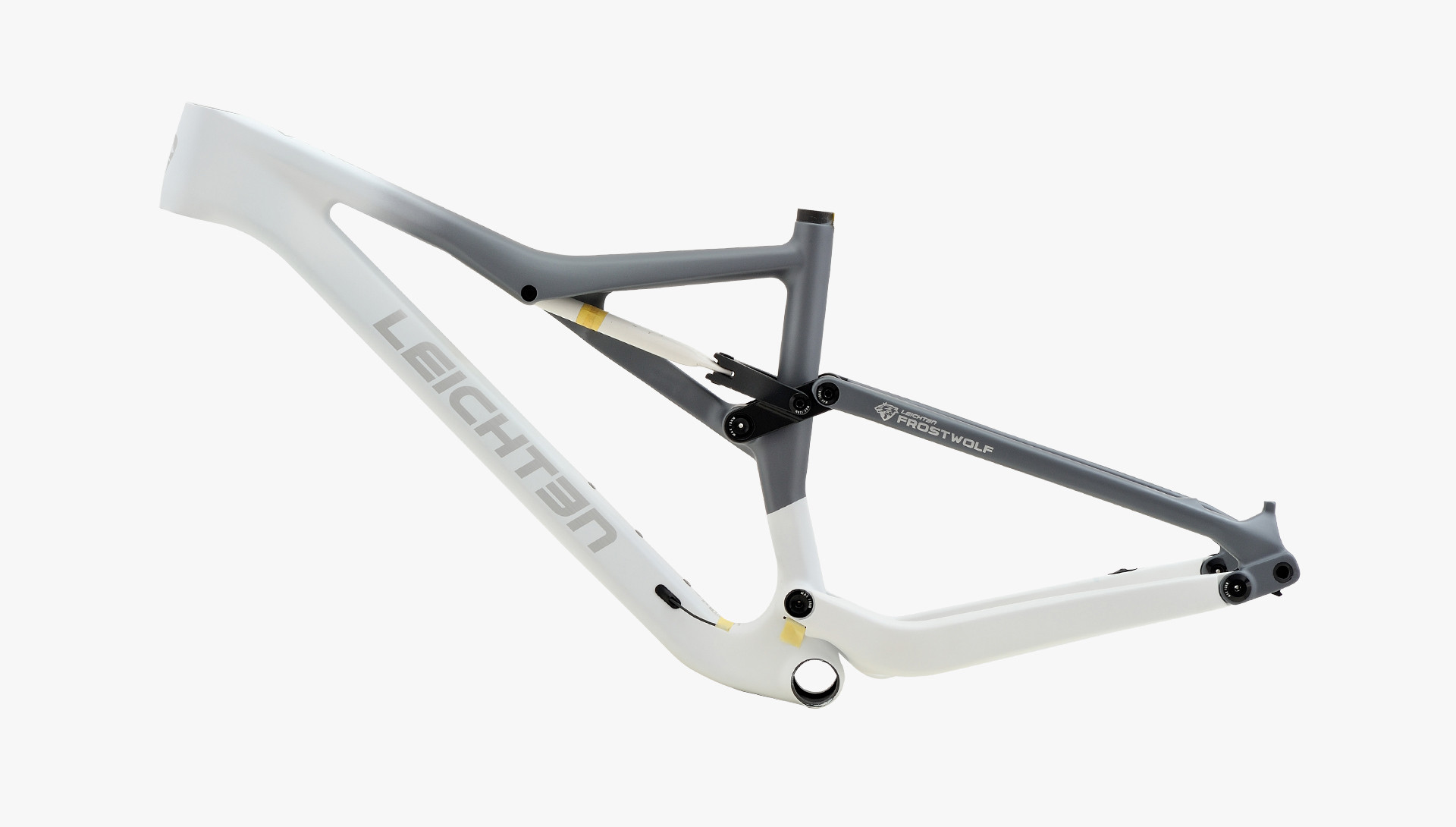

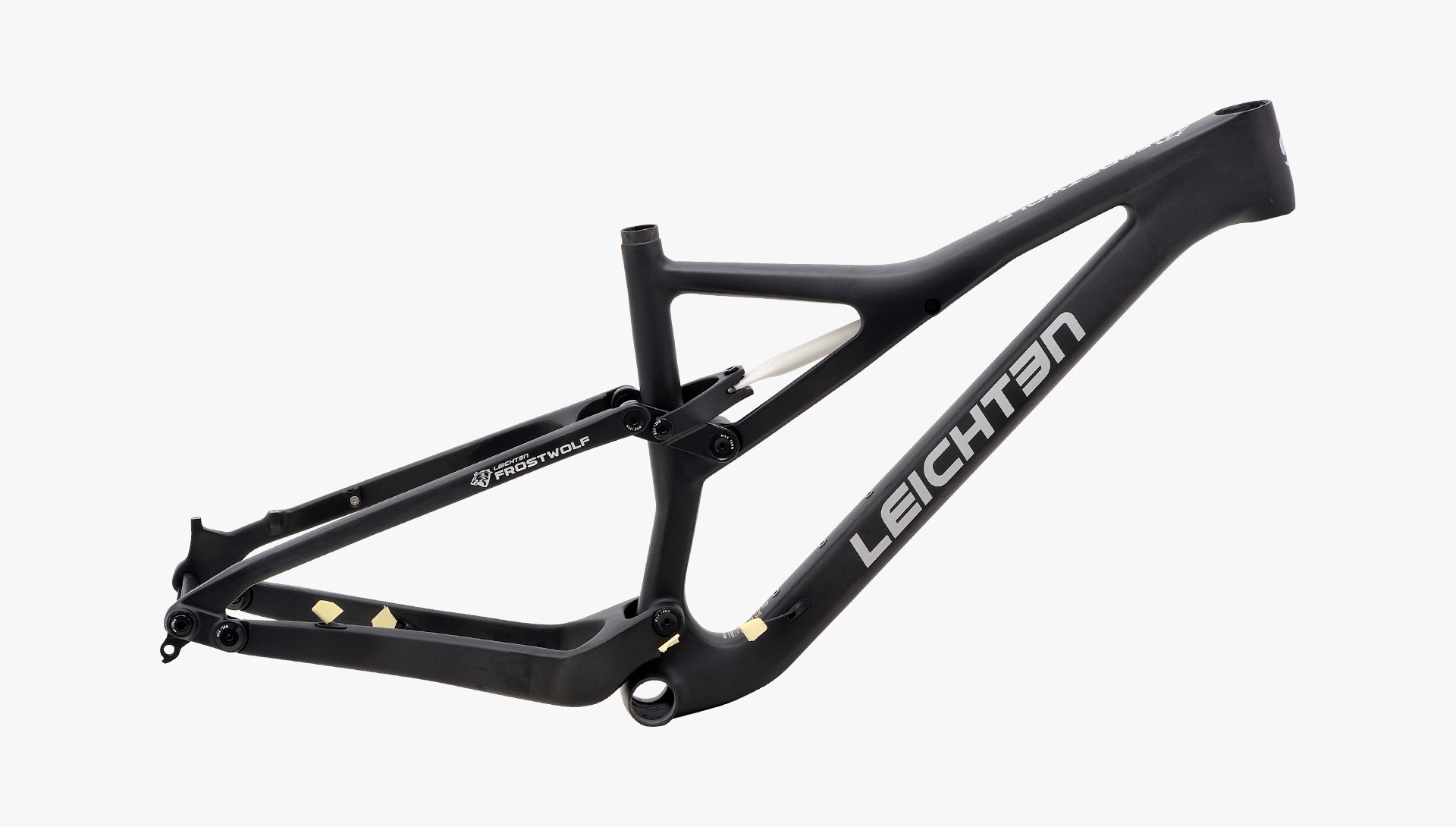

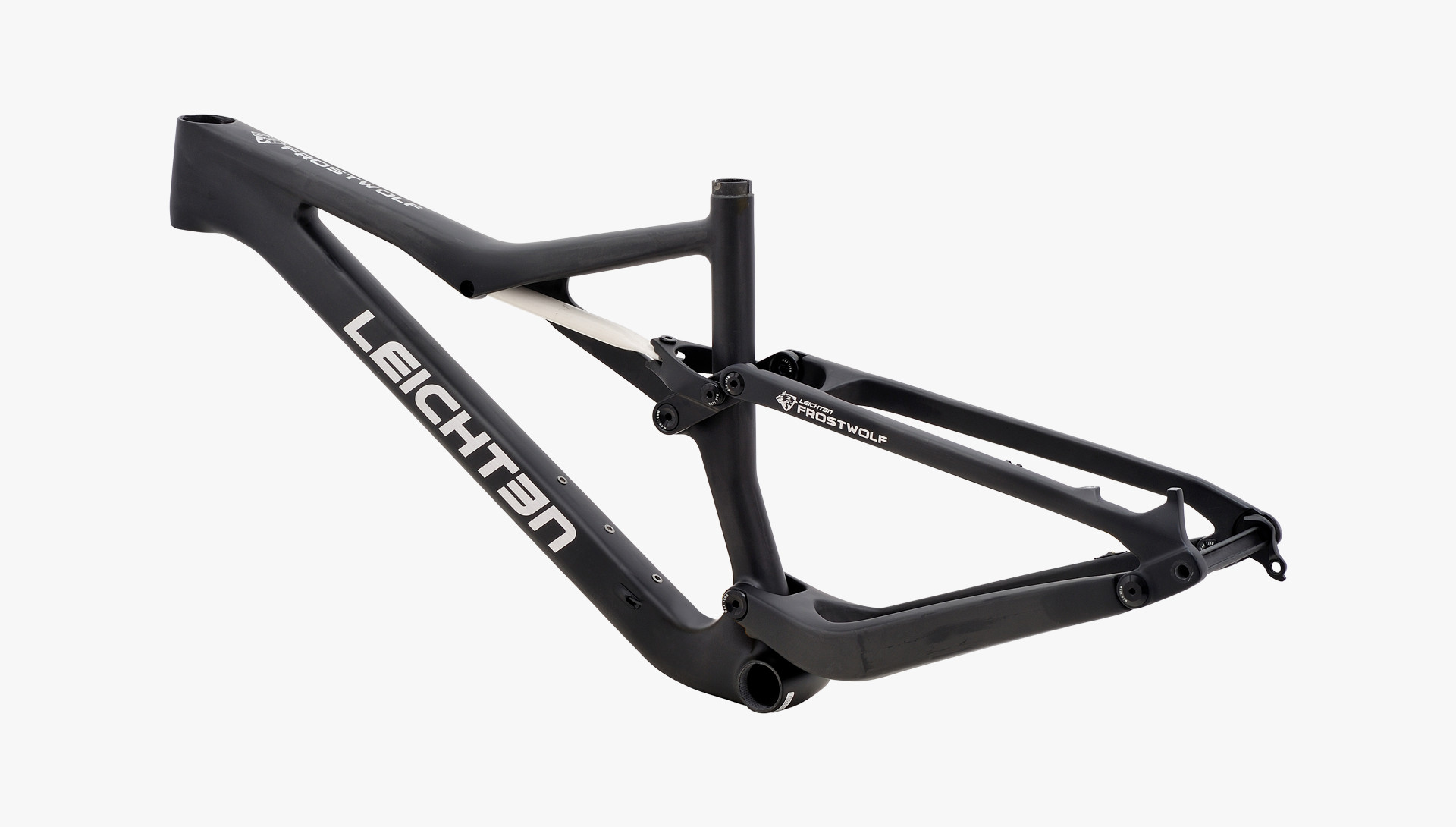

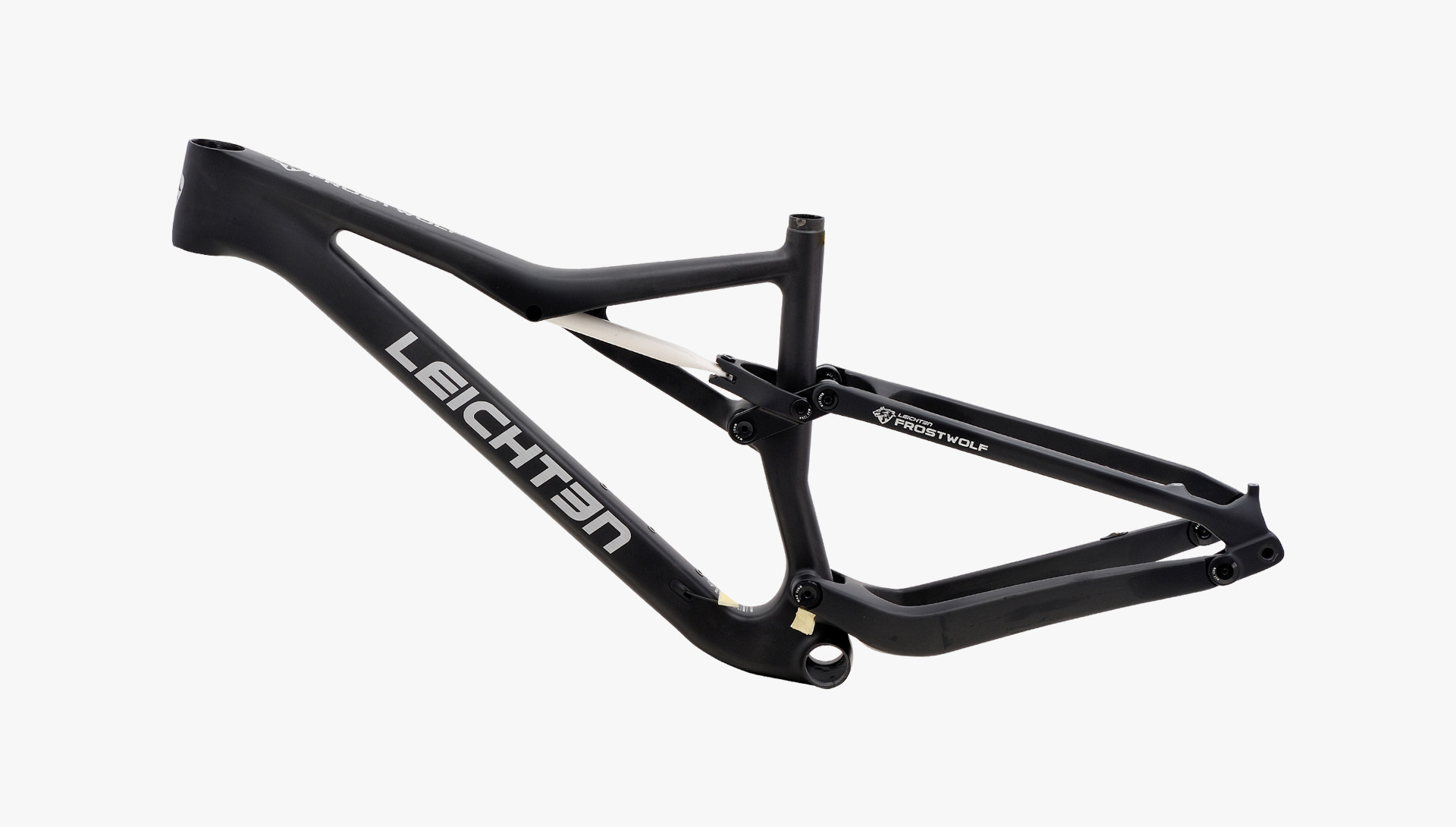

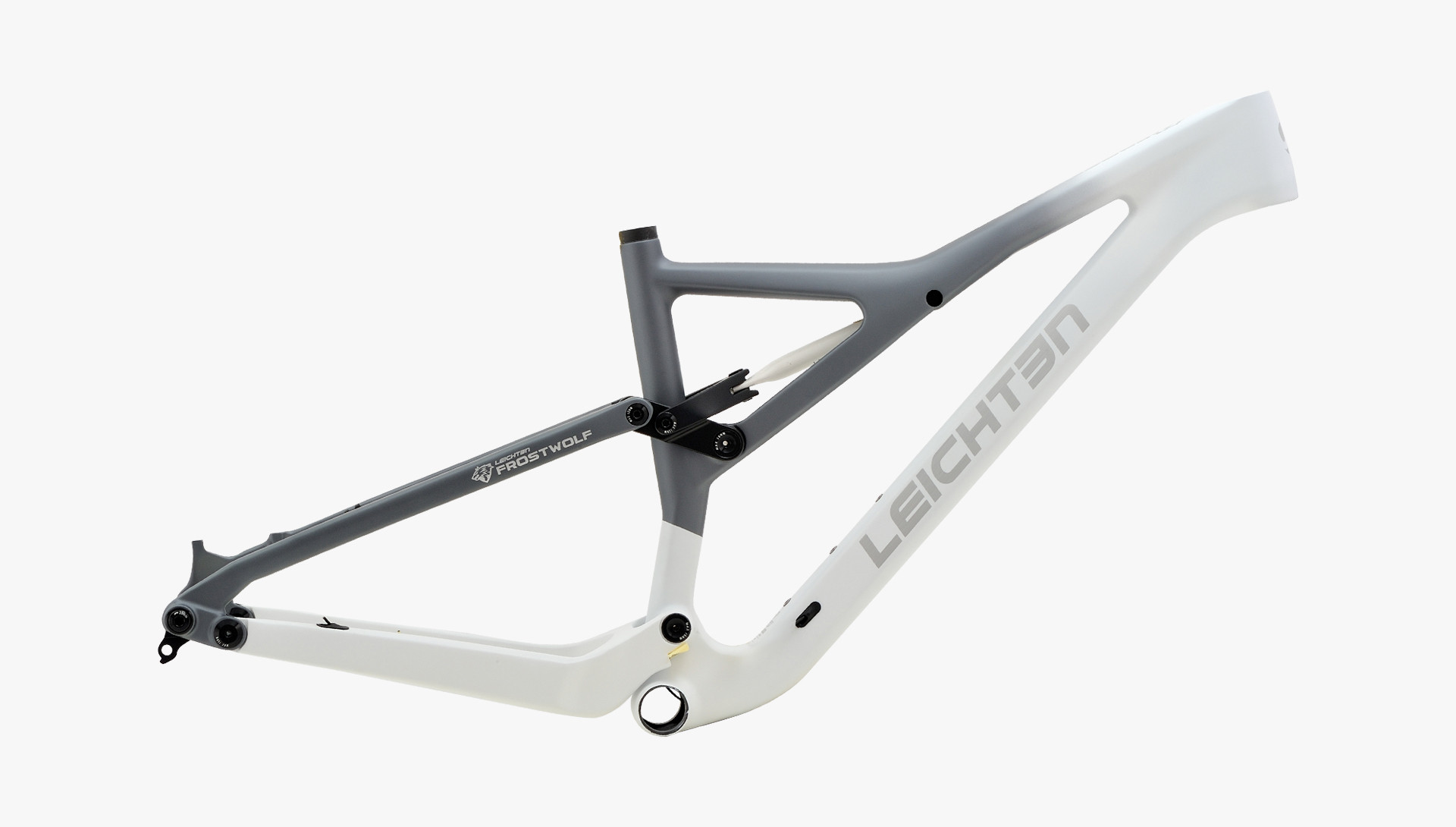

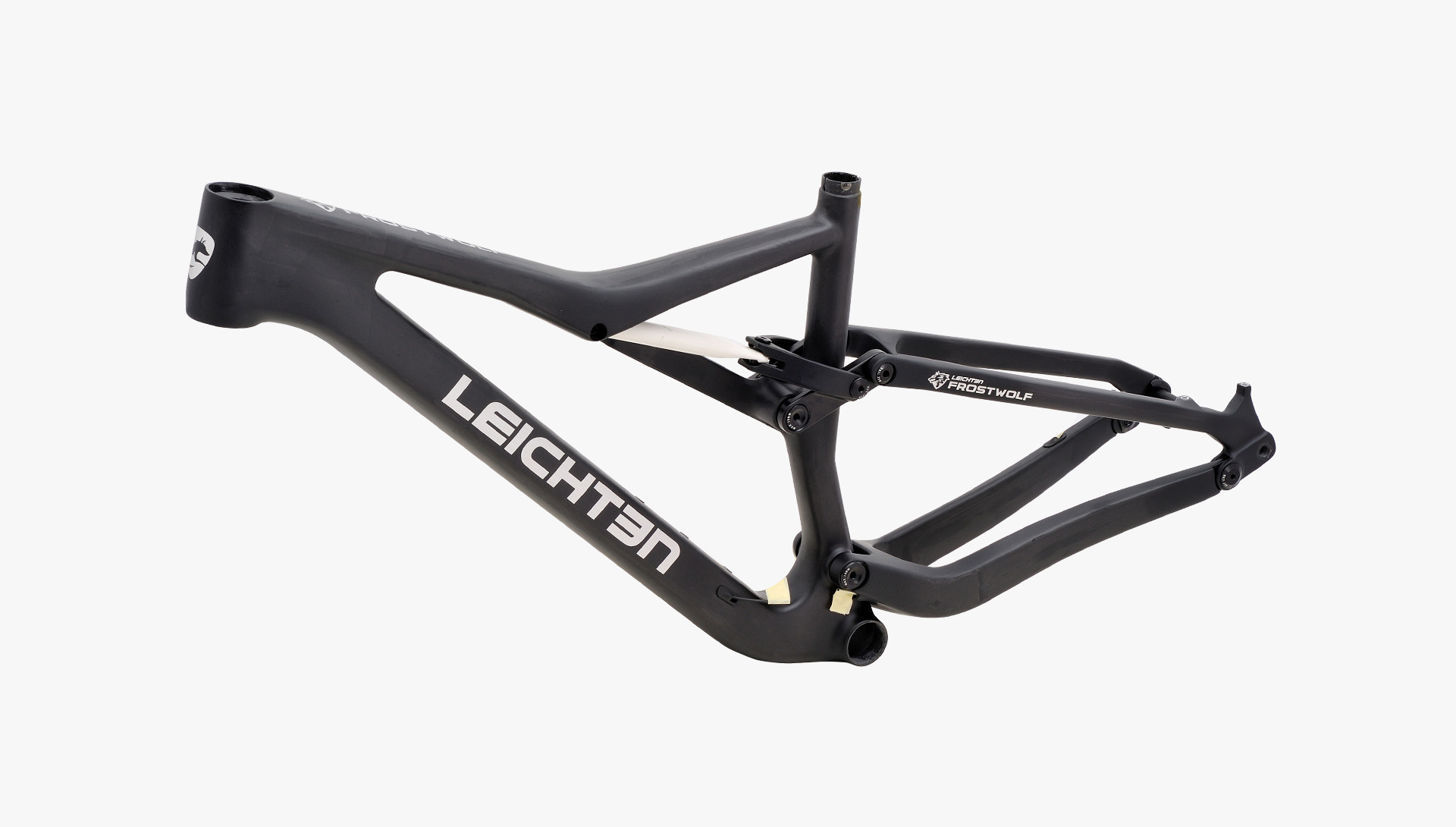

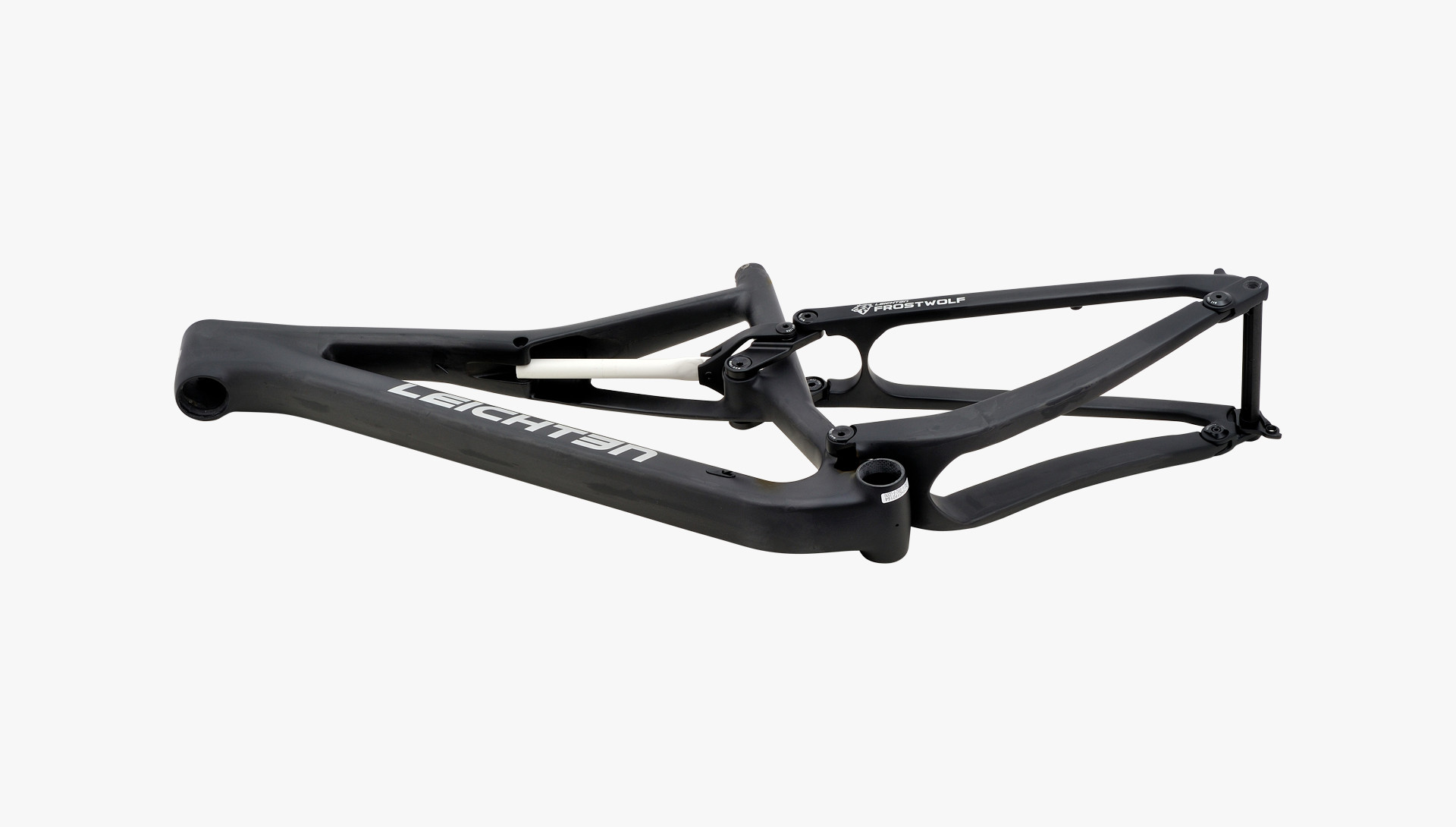

ARCTIC WOLFORD FRAME

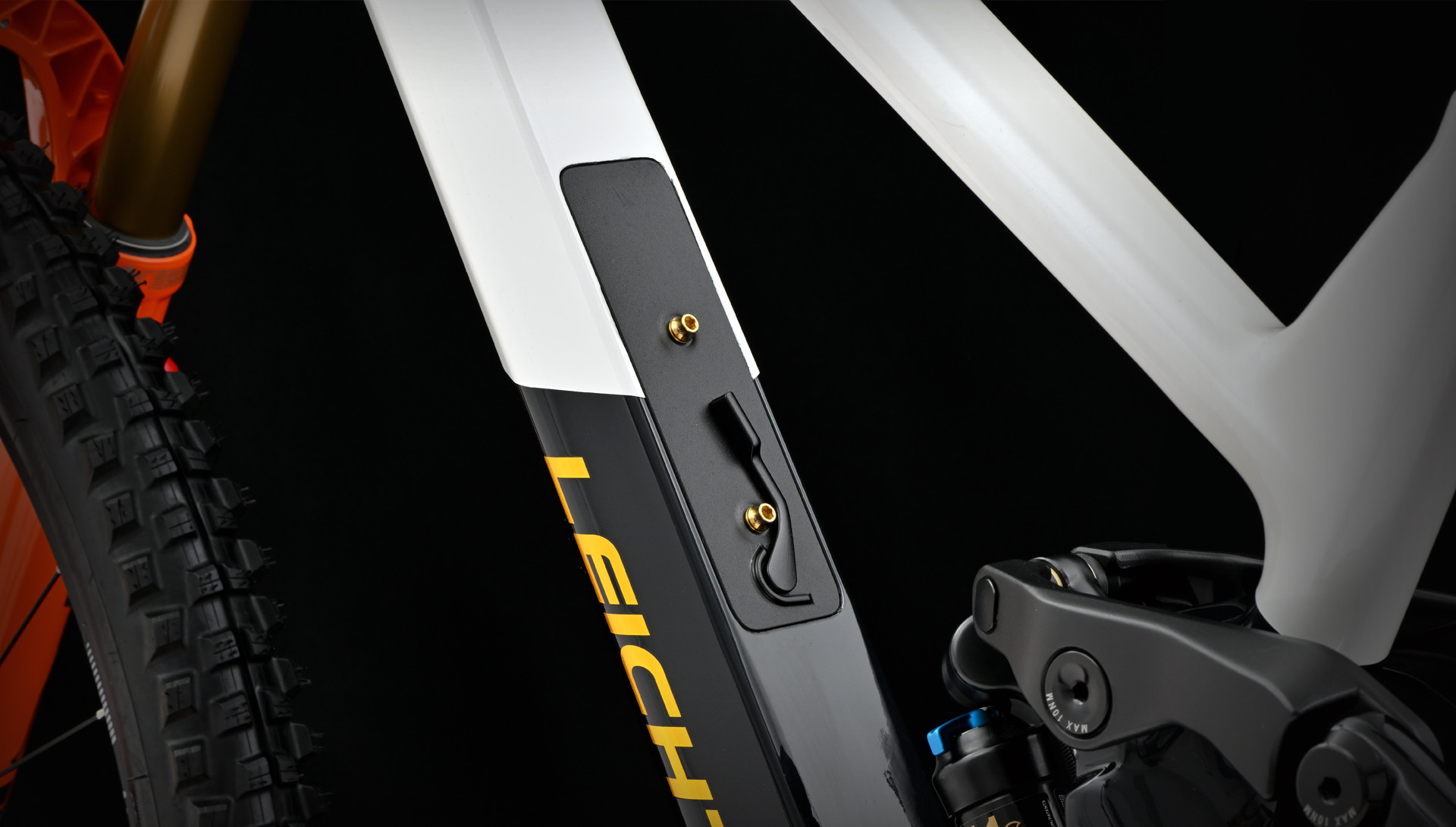

The Arctic Wolford frame is constructed from professional-grade carbon fiber, Utilizing amulti-directional layup process and internal structural reinforcement, it incorporates tar.geted strengthening in key stress areas to achieve a harmonious balance between light.weight performance and high rigidity. The frame geometry is optimized based on trailriding data, offering an efficient climbing posture and a stable descending center of gravi.ty. The rear triangle design effectively balances pedaling efficiency with terrain feedback. The frame features an adaptive full-suspension system paired with a four-bar linkage,maintaining consistent tire traction across complex terrain. A fully internal cable routingsystem runs from the head tube to the rear dropout, ensuring a clean aesthetic and re.duced maintenance, The rear axle standard accommodates the latest drivetrain specifica.tions, while sealed bearings at critical pivot points ensure long-term smooth operation and reliability.
Bicycle Specification
- 1Frame size: S/M/L
- 2 Headset: FSA ACR (1 1/2”)
- 3 Seatposr: Ф3l.6mm
- 4 Cable Routing: Internal Cable
- 5 Travel: F150/R130
- 6 Tire (MAX): 29x2.6

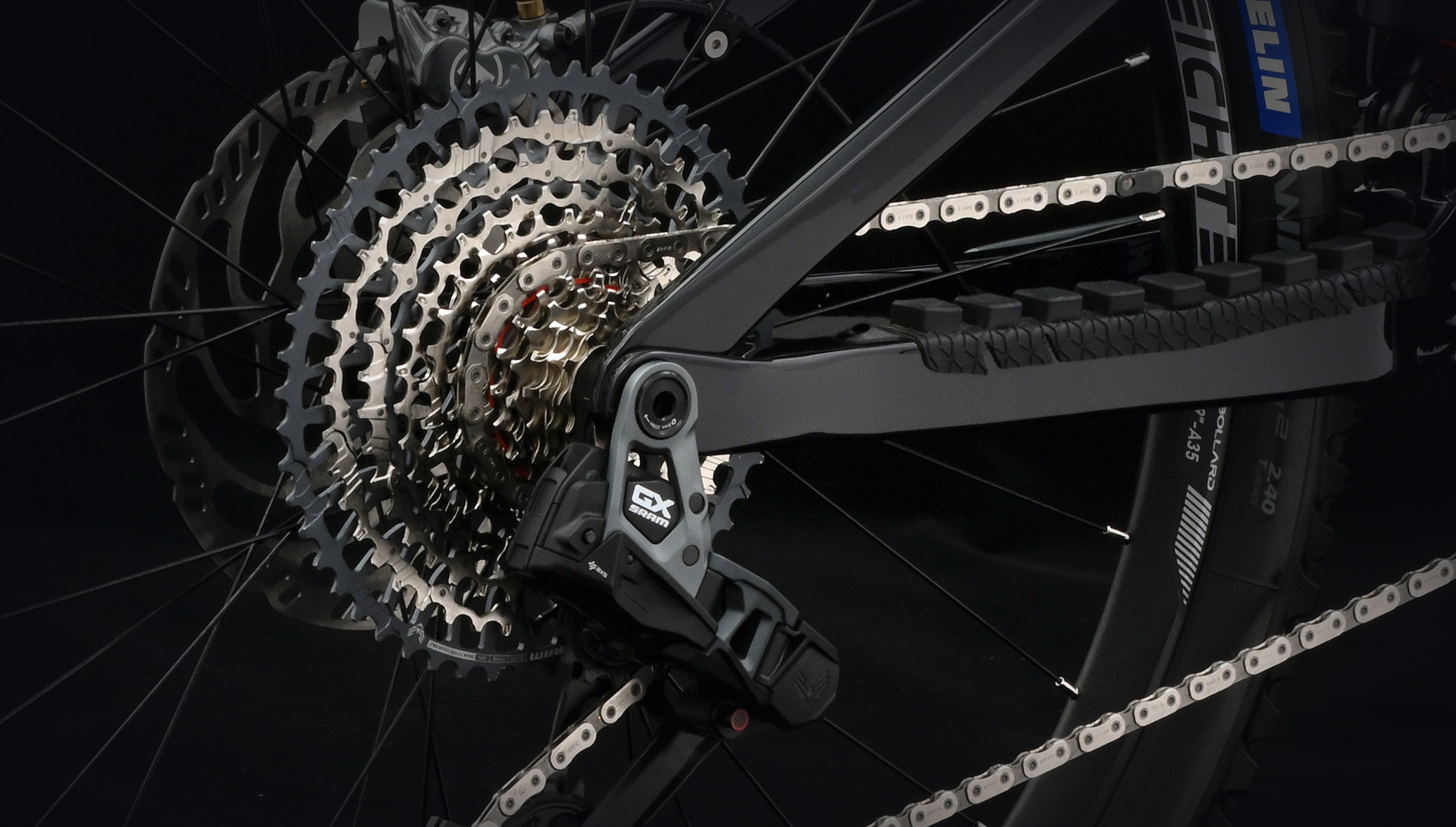

- 7 Width ofRear Axle: 12x148mm
- 8 Chain(MAX): 34T
- 9 Middle shock: 190x45mm
- 10 Weight: 2300g/SIZEM/BB92
- 11 Brake: 180mm

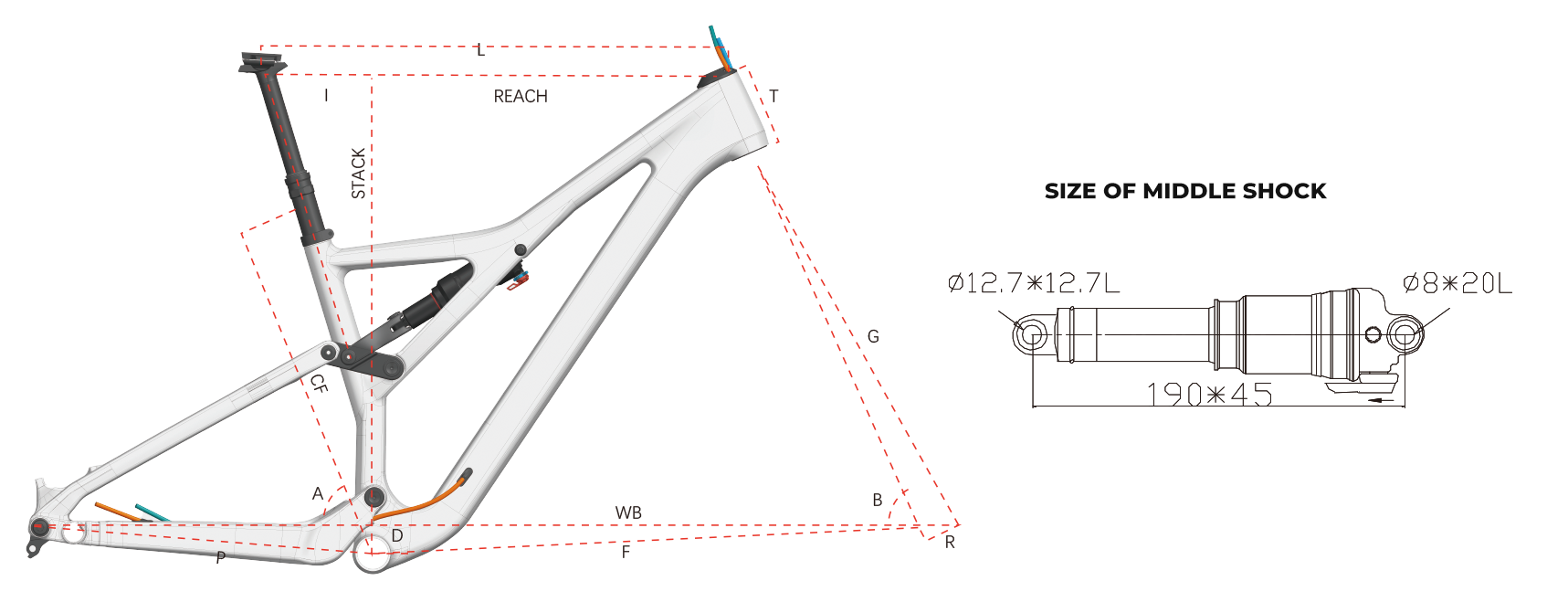

FRAME GEOMETRY
